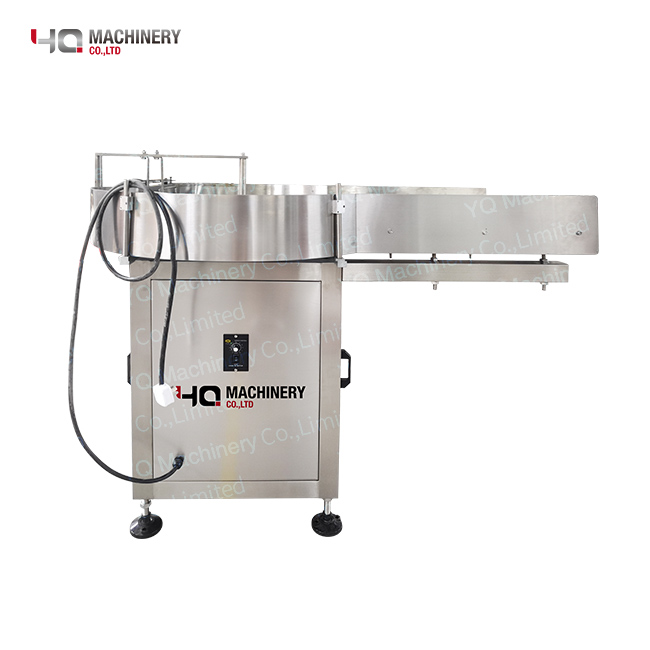

Bottle feeding turntable
Machine Introduction:
This bottle unscrambler turntable puts plastic bottles on the round table, the table can move one by one and then the bottle enters to filling machine for filling. The following equipment can be selected, and form unscrambler,filling,capping and labeling machines
Production speed | 30-100 bottles/min (speed adjustable) |
Applicable specifications | 10-1000 ml |
Bottle diameter | φ10-φ90 mm |
The bottle height | 85-300 mm |
Voltage | 220v three phase;50/60hz |
Power | 0.4 kW |
Weight | 150kg |
Machine size | 1000*1000*1300mm (L×W×H) |
Stainless steel | SUS304 material |

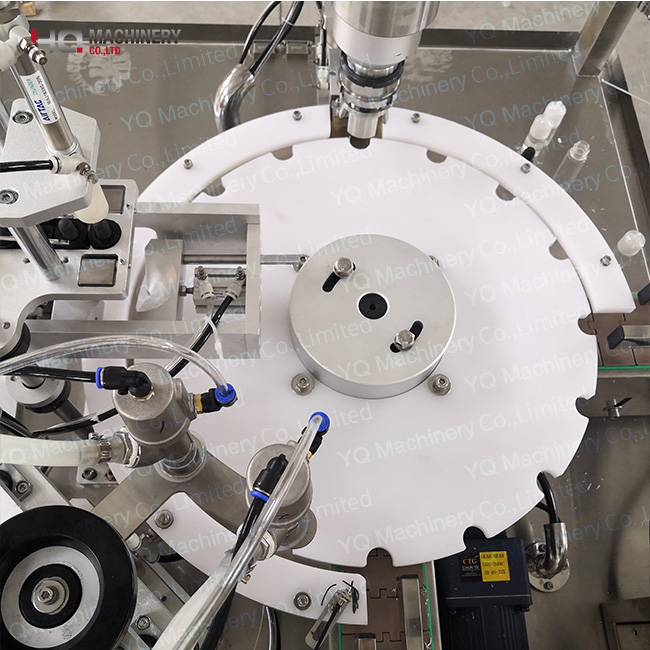

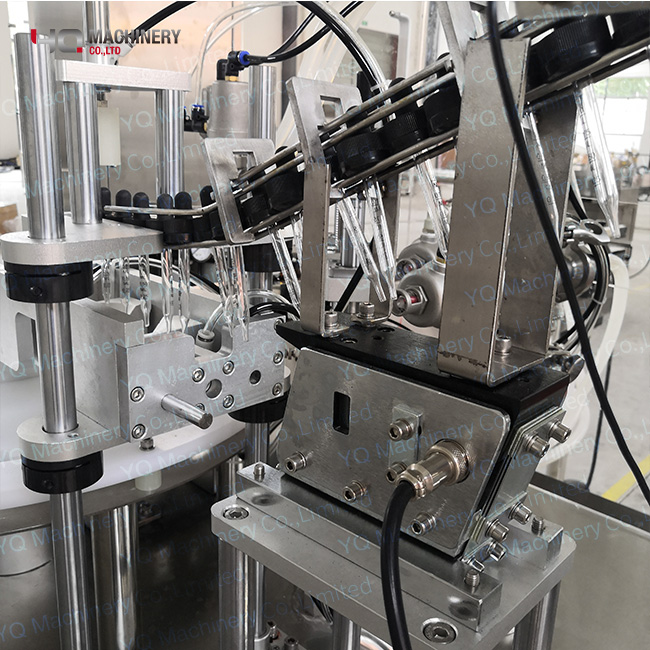

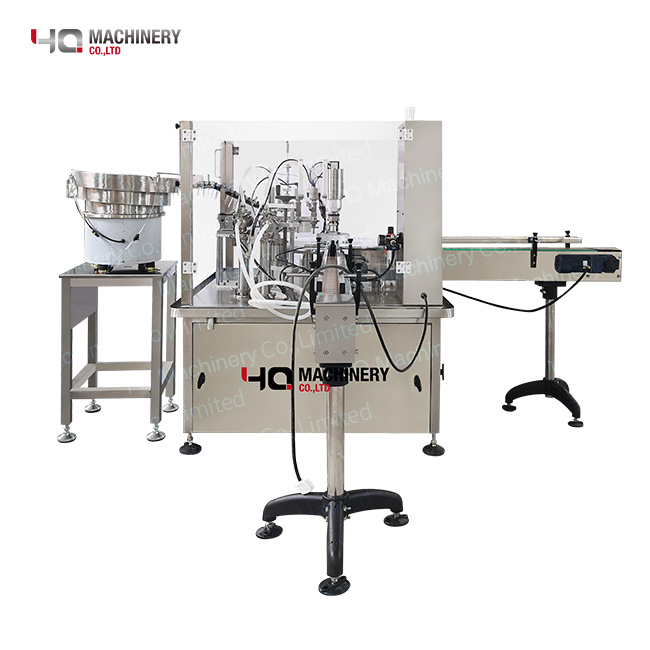

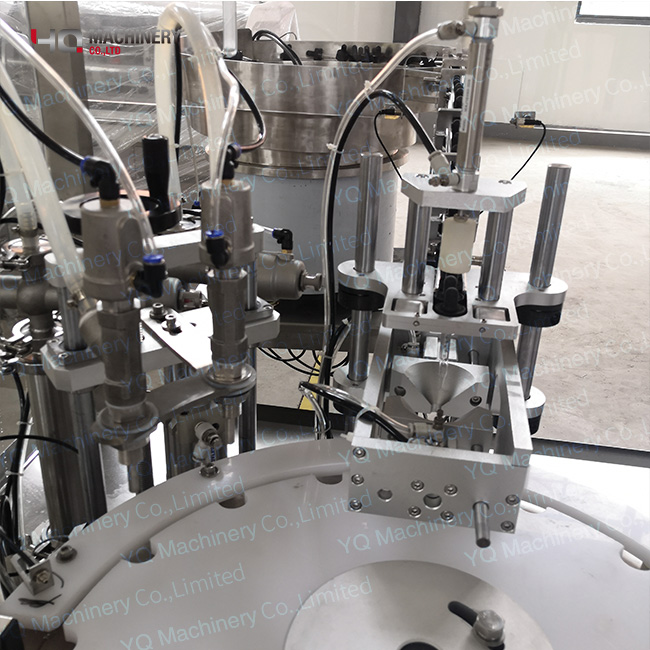

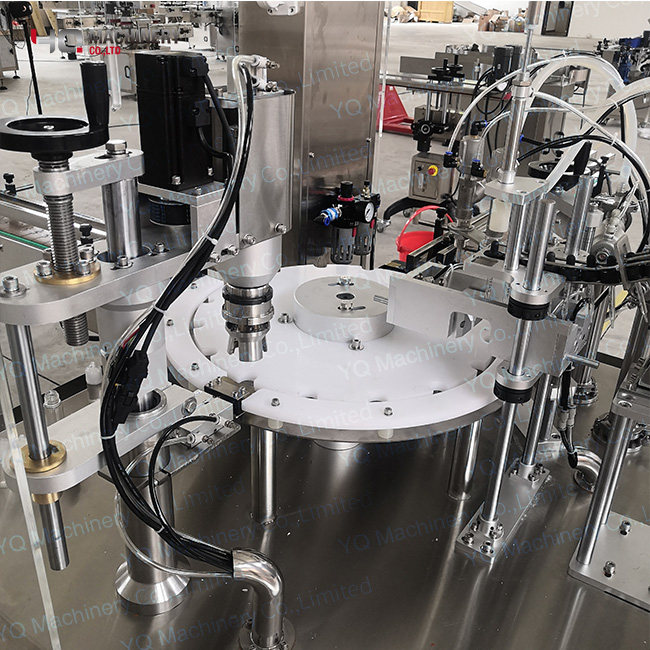

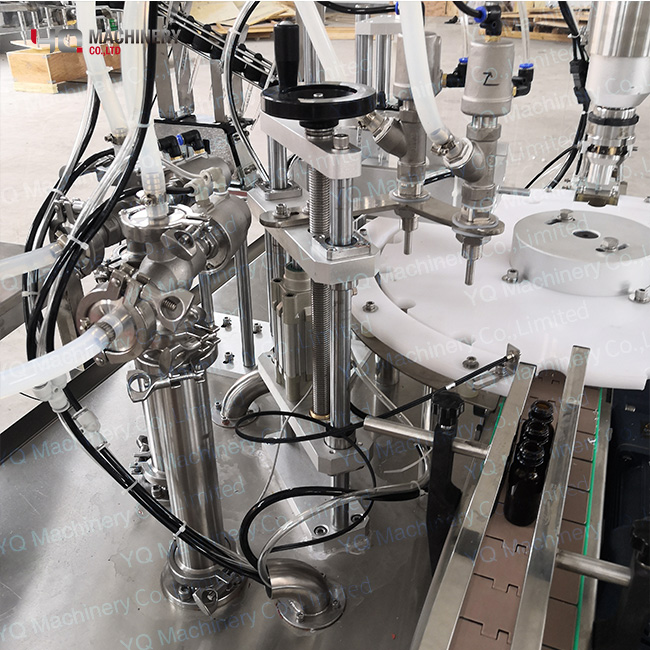

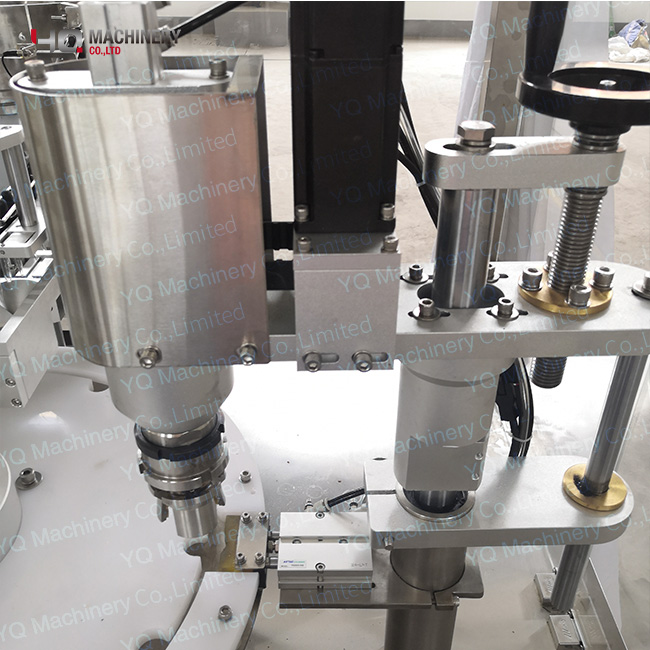

Monoblock filling and capping machine
Introduction of rotary filling machine
It is a professional filling system for small bottles, which is independently developed by our company based on absorption of advanced technology. This liquid filling equipment adopts star wheel-positioning filling, manipulator-type cap sealing, which is stable and reliable with accuracy of over 99%. This filling and capping machinery uses high-precision cam indexing station, which has high precision, reliable operation and long service life long. The indexer has a simple structure and requires no maintenance for long-term use.
This vial filling machine is mainly suitable for the filling and capping of various small-dose liquids, such as essential oil,hemp oil,e liquid and so on. Widely used in pharmaceutical, chemical industues. This liquid dispensing machine is with advanced peristaltic pump or stainless steel piston pump, with high filling accuracy. The whole rotary filling and capping machine includes transmission parts, filling parts, cap unwinding parts, capping parts, etc. It has a compact structure, reasonable design and smooth operation. ,long lasting. This filler can be used for stand-alone production, or can be combined with bottle washing machine, dryer,labeler,cartooning equipment to form a linked production line. Fully meet the national GMP requirements. This type of liquid dosing machine can upgrade the electrical configuration according to customer requirements.
Features
1.Man-machine interface setting, intuitive and convenient operation, PLC control, accurate loading.
2. Variable frequency control, arbitrary adjustment of production speed, automatic counting.
3. Automatic stop function, no bottle, no filling, no inner stopper.
4. Disc positioning filling, stable and reliable.
5. High-precision cam indexer control, accurate positioning.
6. Made of SUS304 and 316L stainless steel, fully comply with GMP requirements.
Technical Parameters
Model | YQFC-120 |
Power | 220V / 50Hz |
Power | 2.0 kw |
Filling range | 10-100ml (can be customized) |
Filling volume error | ≤ ± 1% |
Production capacity | 20-40 bottles / minute |
Dimension | 2300 * 1200 * 1800mm |
Machine net weight | 600 kg |

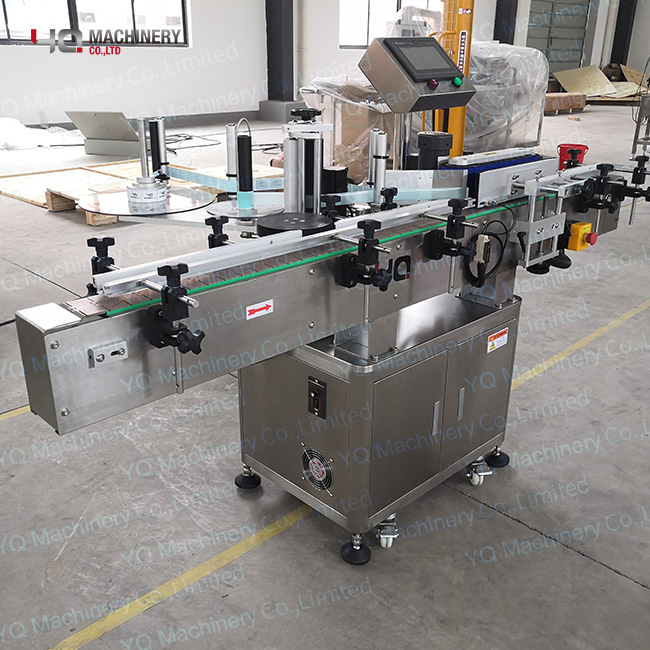

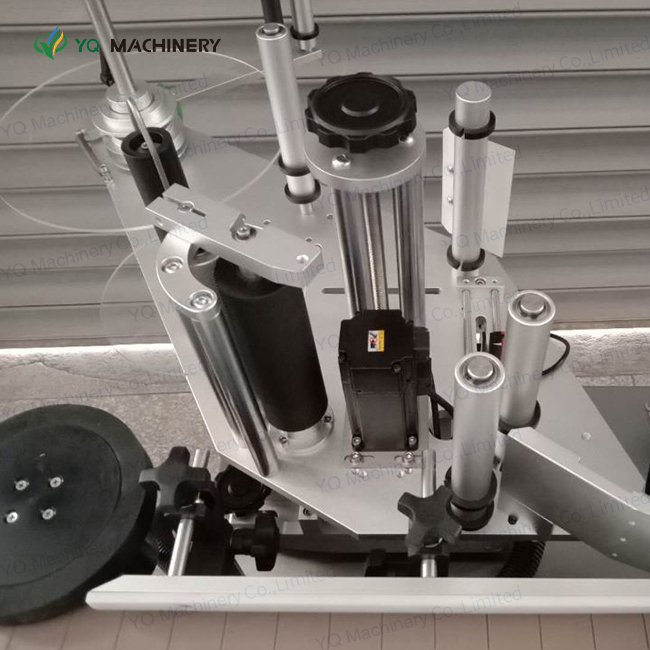

Vial labeling machine
Introduction of bottle labeling machine:
This labeler can be used for round shape container.and also suitable for PET bottles,metal bottles,glass bottles etc.It is widely used in food,beverage,cosmetic pharmaceutical industries.
Technical Parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-120(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2200(L) 700(W) 1270(H)mm |
Optional function for bottle label applicator: | 1. Hot coding function;injet printer 2. special sensor for transparent label; 3.Other functions (customized according to customer requirements) |

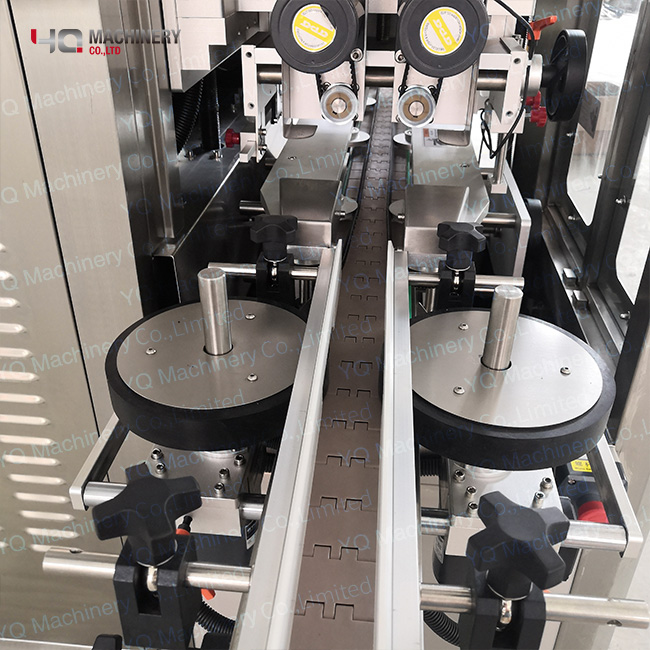

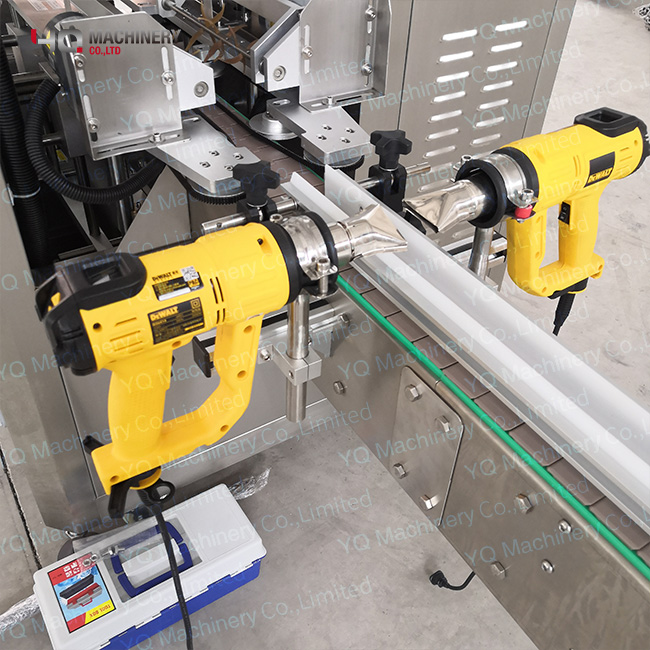

Tamper evident neck band applicator
Introduction of shrink sleeve labeling machine:
This tamper evident band applicator is suitable for all kinds of containers, bottles sleeves (such as food, beverages, cleaning supplies, medicines, wine bottles and other plastic and glass bottles).
Multi-bottle options: It can meet the needs of round bottles, square bottles, oval bottles, flat bottles, curved bottles, cup shapes, etc. Forced direct nesting method, accurate and fast positioning. Various shrinkable films with a thickness of 0.035-0.045mm can be used, saving a lot of raw material costs. The temperature of the hot air shrinking furnace is uniform and stable, and the shrinking effect is ideal.
Technical Parameter of shrink band applicator:
Host machine | AC220V, 50/60HZ, 3KW, single-phase |
Production speed | 15,000 BPH as 100mm label(The speed can be adjusted according to your requirement) |
The standard length of label | 300mm |
Diameter of bottle body | ∮20mm-∮100mm(can be customized according to customer’s requirement) |
Length of label | 100mm |
Thickness of label | 0.045mm |
Material of label | PVC、 PET、 OPS |

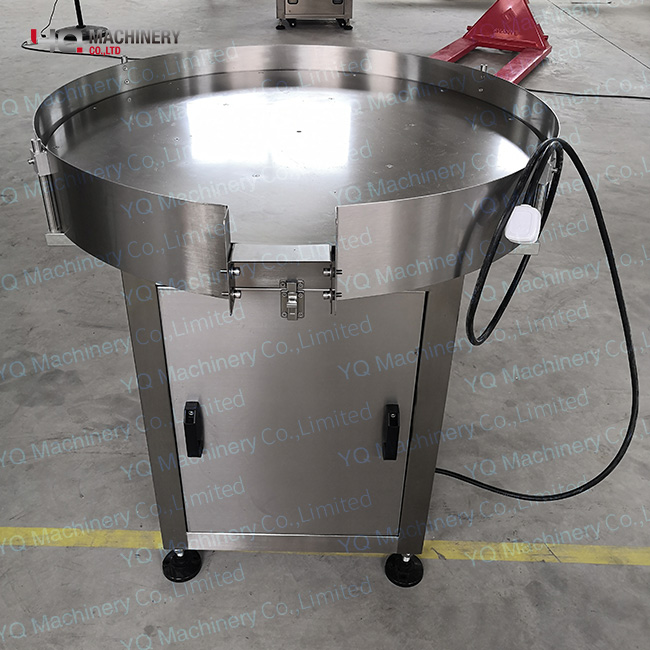

Bottle Collector Machine
Introduction:
Bottle collectors are usually added at the end of the production line, effectively improving the efficiency collect of the packaging system. Bottle accumulator table are used for various plastic bottle and glass bottle (round, square shape) transport or collect. Collection mode allows the turntable to store multiple bottles until it is unloaded, packaged, or continues to the next process in the line. It's widely used for food,commodity,health care products,pharmaceutical industries.
Technical Parameters:
Applicable specifications | 100-1000 ml |
Bottle diameter | 10-80 mm |
Bottle height | 85-300 mm |
Production capacity | 30-120 BPM (speed adjustable) |
Voltage | 110v/220v;50hz/60hz |
Power | 0.5 kw |
Weight | 130kg |
Machine size | 800*800*850mm (L×W×H)can be customized |
Stainless steel | SUS304 material |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
