Introduction:

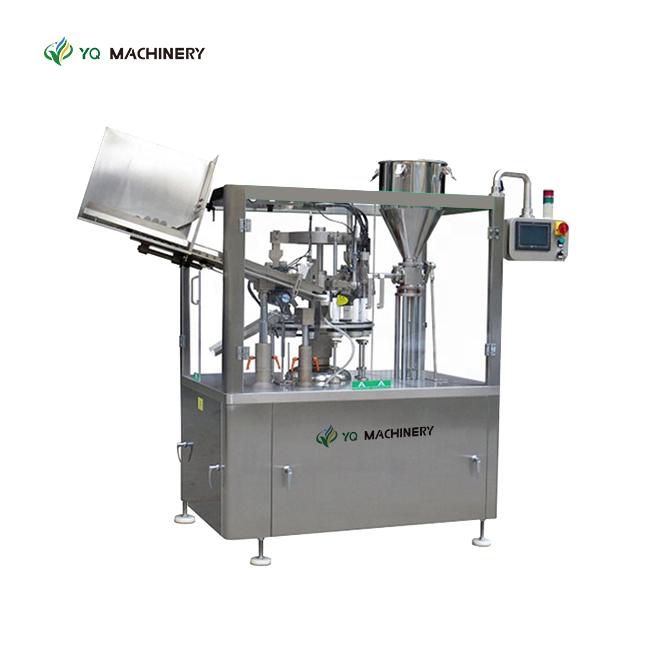

The compound tube filling and sealing machine is made of all stainless steel, and the working process is controlled by the button. All work adopts high-precision cylinder full stroke, easy to adjust the filling volume and speed. This tube filler machine is actually used for filling, sealing, date printing and tail cutting of composite pipes. The sealing tail is beautiful and neat, the sealing is firm, the measurement accuracy is high, and the stability is good.
Optional according to different materials: hopper heating system, anti-drawing filling head.
Compact Design:
1. Automatic Tube Loader Feeding Tubes
2. Driving Parts Fully-closed
3. Intelligent Temperature Control and Cooling System
4. Easy to Operate and Adjust
5. 316L Stainless Steel Contact Parts to meet GMP Standard
6. Safety Interlock Shutdown when Door is Open
7. Overload Protection Provided
8. Automated Working process from Tube Loading to Finished Products Output
9. Automatic Orientation Effected by Photoelectric Induction
10. Chiller
11. Date Coding Embossing
Parameters:
Filling volume | 1-400ml/unit(adjustable ) |
Filling accuracy | <=±1% |
Capacity | 1800-4800unit/hour,(adjustable ) |
Tube length | 50-240mm |
Tube dismeter | 12-60mm |
Hopper volume | 40L |
Power | 380V/220V |
Air pressure | 0.4-0.6MPa |
Equipped motor | 1.1KW |
Machine power | 5KW |
Inner wind motor | 0.37KW |
Convulsions motor | 0.37KW |
Dimension | 2270*960*2100(mm) |
Weight | 1350KG |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
