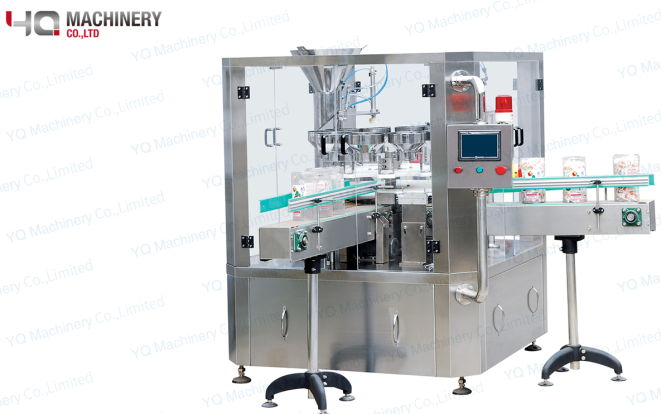

A.Weigh Filling Machine
Introduction:
YQ Weigh Fillers provide you the perfect blend of accuracy, speed, and versatility across a comprehensive line of net weigh feeders. Our weight and packaging machine are ideal for the controlled dispensing of products that are unsuitable for traditional auger filling. The line consists of single or multiple vibrating trays that carefully regulate the product into a load cell-equipped weigh bucket. When the required weight is attained, the bucket dispenses the product into a container
Application:
With customized elements, including the multihead weigher, Z type elevator, platform and control system.Our weigh filling machines are designed to handle unique products with accurate weights. From small consumables such as nuts, candy, snack foods, and coffee to industrial-use powders, granules, and chemicals, our series of weigh feeders offer the flexibility to handle many types of products.
Video 1
Video 2
Technical Parameter
Filling head | 1 Heads |
Bottle type | Round/Square jar,tin can,bottle |
Packing range | 5g-1000g |
Packing speed | 1500-2400 bottles/hour |
Voltage | 220V 1phase 50/60HZ(can be customized) |
Work pressure | 0.8Mpa |
Power | 1.5KW |
Weight | 300kg |

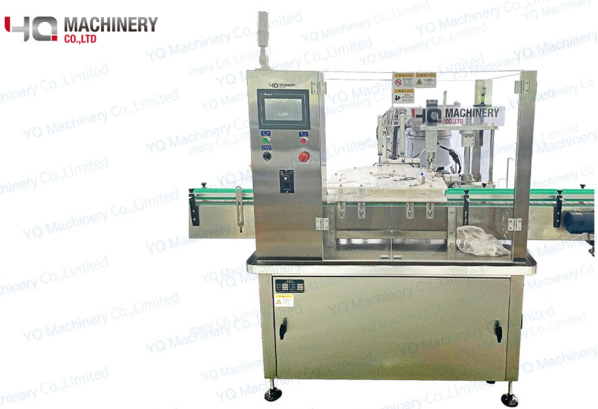

B.Rotary Capping Machine
Introduction:
YQ designs automatic filling, capping, and labeling automated monoblocks. We designed these capping systems for a wide range of products, ranging alimentary products, chemical, cosmetic, and pharmaceutical products.
Over the years we have gained extensive experience in this field. We make robust and reliable products, as well as components tailored to the specific needs of our customers.
Features:
No Bottle - No Capping System
Rotary Bottle Movement system for smoother operation
Machine construction in SS 304 material
Very high capping accuracy
Automatic In-feed and Exit of Bottles
Minimum Change Over time
Capping operation in Single machine due to Monoblock design
Built-in servo motor control for torques
Additional function: filler, tip/plug placer
Technical parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 20-30 bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 500kg |
Package size | 1800*1000*1600mm |

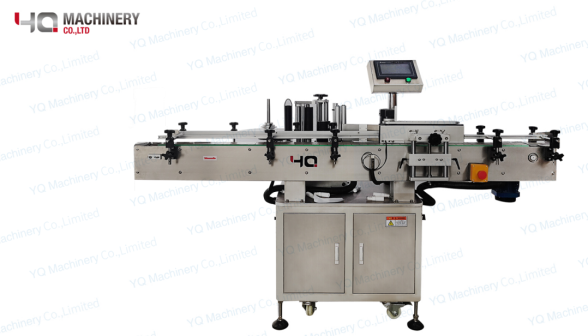

C.Sticker Labeling Machine
Introduction:
Round Bottle Automatic Labeling Machine is a stand type bottle labeling machine that is suitable for adhesive labels to be applied on cylindrical containers of various shape and material.
YQ Sticker Labeling Machine can label various types of round bottles.It is designed with a solid base, allowing the labeling system to reach high speeds while maintaining stability.
The Labeler is armed with the newest and fastest PLC control technology. It is the most economical and efficient labeling machine in terms of capabilities. This labeler is fast, easy to operate, and easy to maintain. It is flexible enough to handle production schedule and product changes quickly and easily.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
