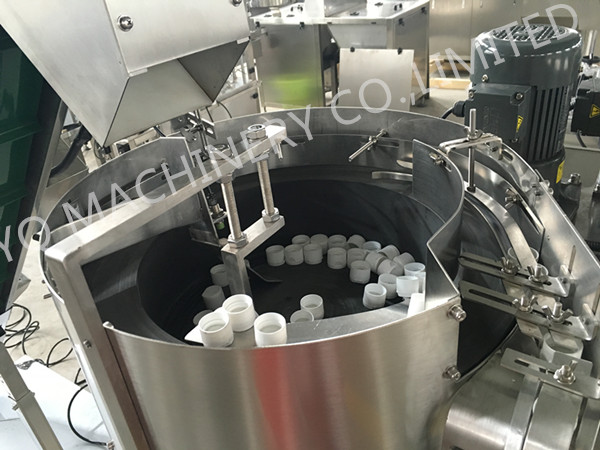

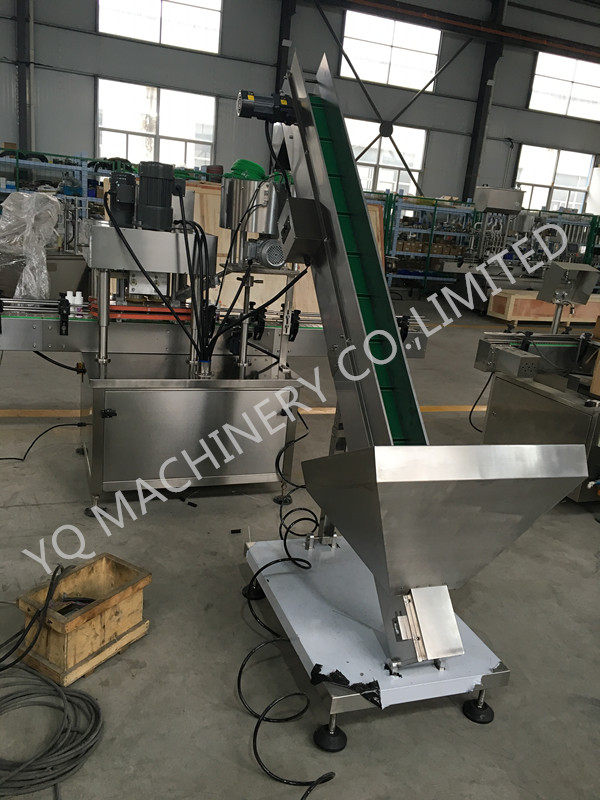

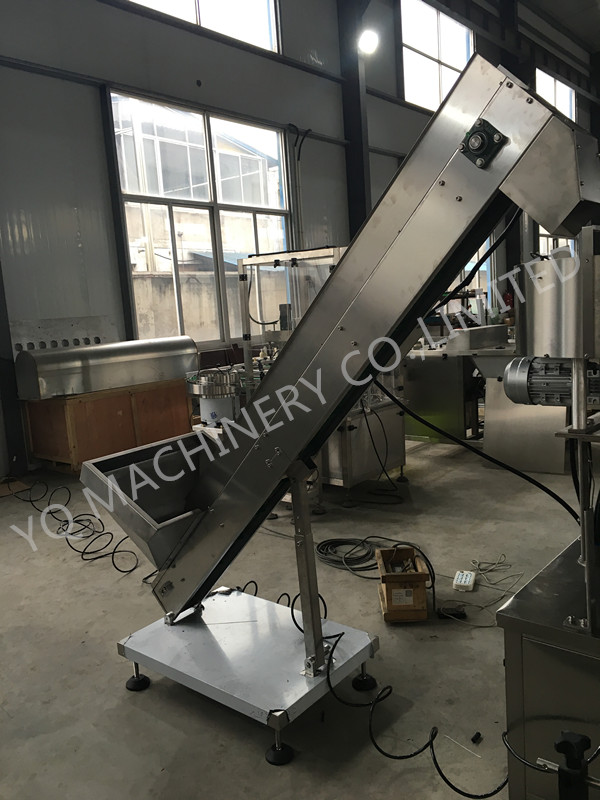

Inline capper and labeler were bought by American customer.There is also cap elevator which works with capping machine.

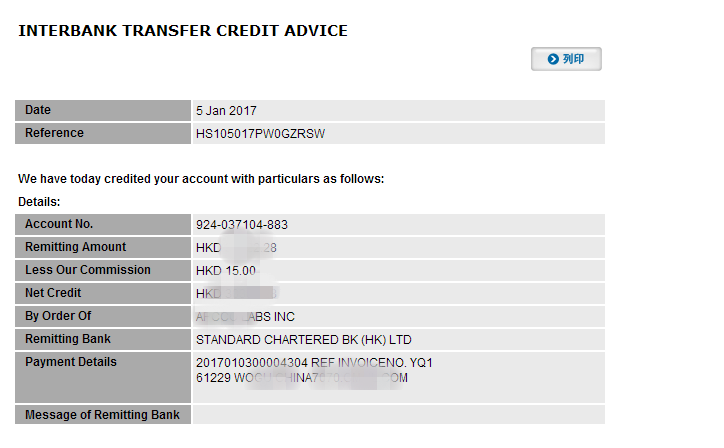

Below is bank receipt for your reference.

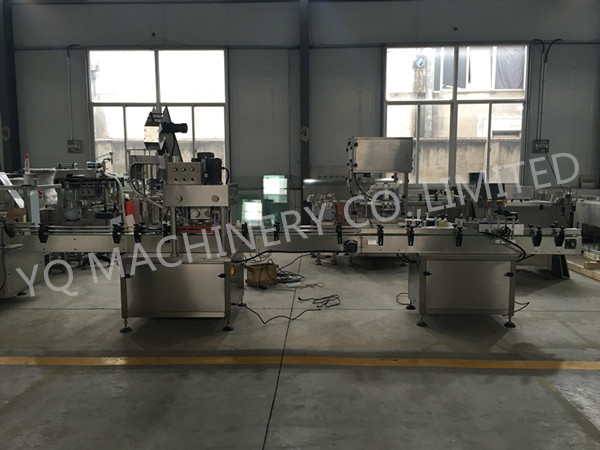

It is tested in our factory and the video has been taken:
There are two machines--capping machine and also adhesive labeling machine.The details have been taken:

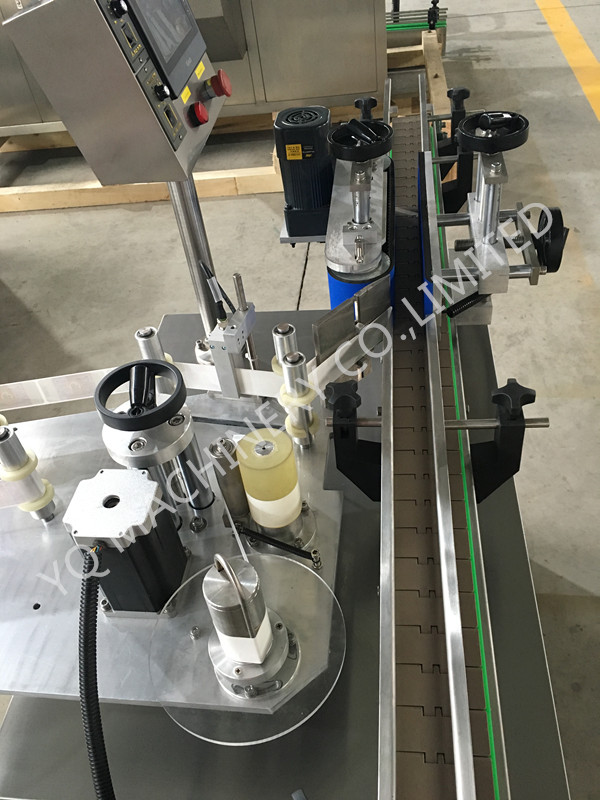

Round bottle labeling machine:
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 60-150(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 40-100mm Height 35-200mm |
The application of label | Height 20-160mm ; Length 23-280mm |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 1800(L) 700(W) 1270(H)mm |

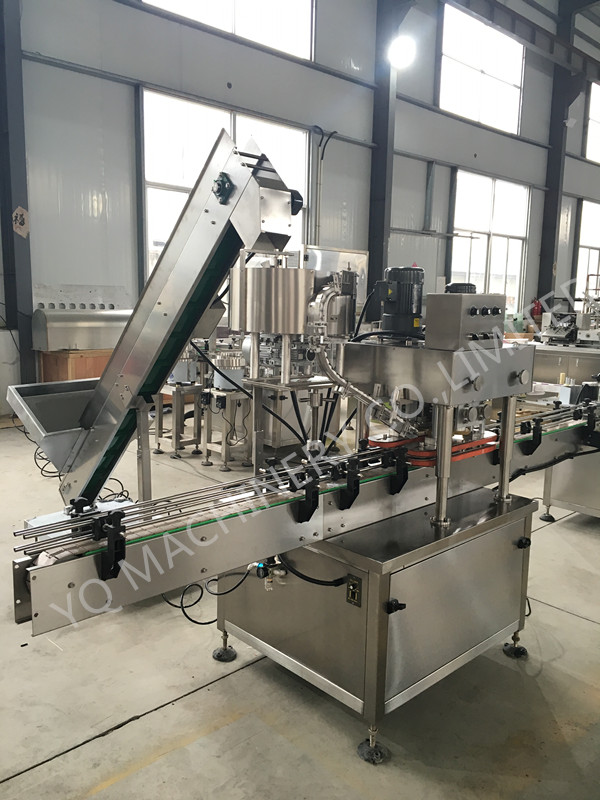

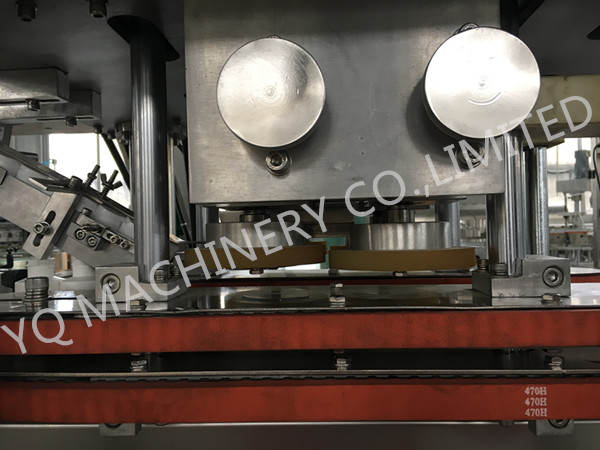

2.Linear capping Machine:
Main features:
1.Capping Machine adopt the frequency converter to control the speed, which can ensure the machine to work stably and keep consistent torque under long term working condition

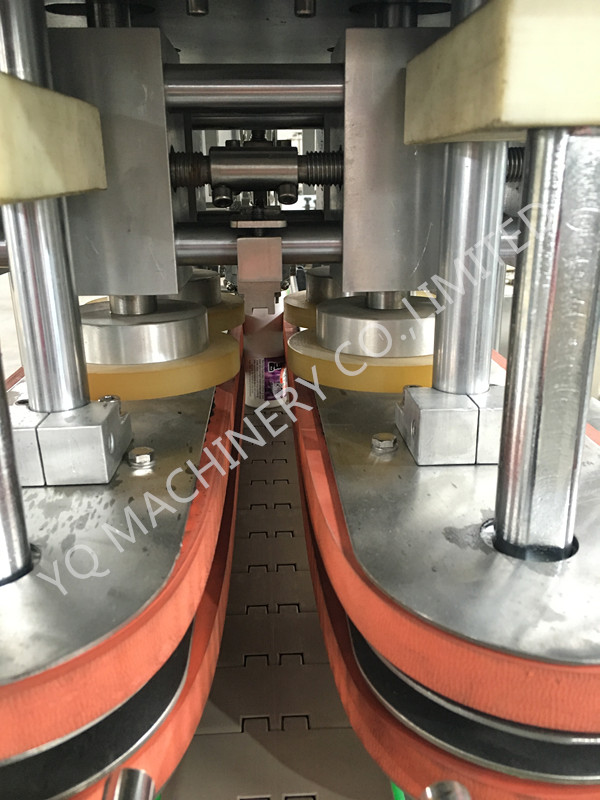

2.the clamping belts can be adjusted separately, which allow the machine to suitable for capping bottles with various heights and shapes

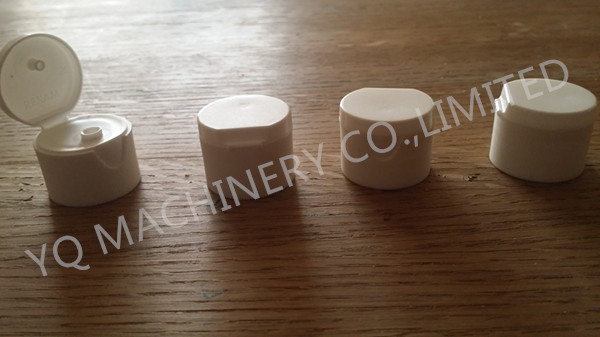

3.if you choose the optional cap guiding system together with the machine ,it will then also fit for pump caps
4.the convenient construction adjustment system is equipped with precious ruler and counter
Technical Parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.7MPa |
Net Weight | 550kg |
Package size | 2100×1200×2300mm |

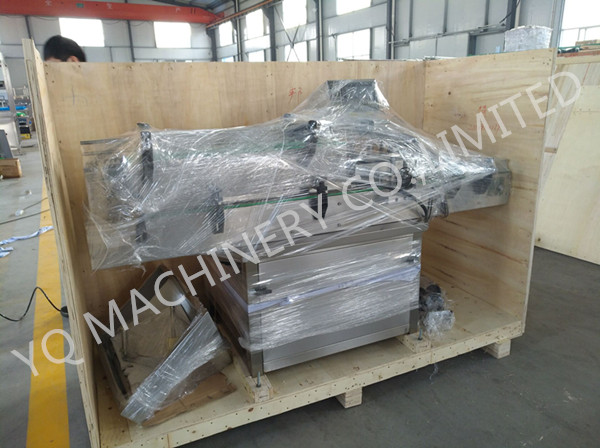

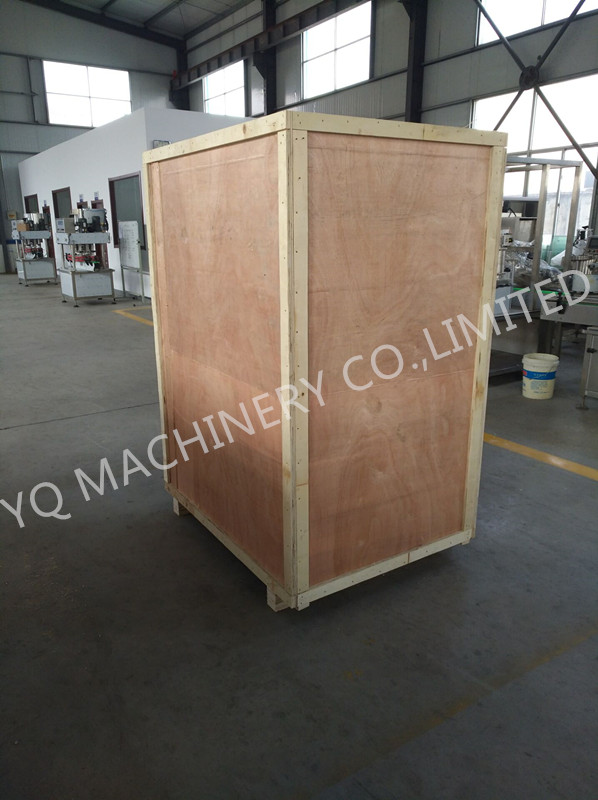

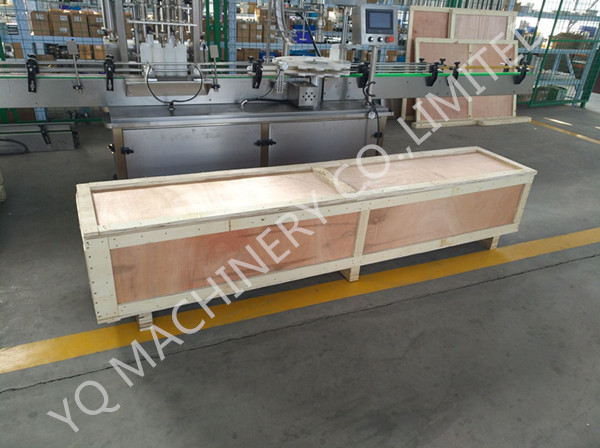

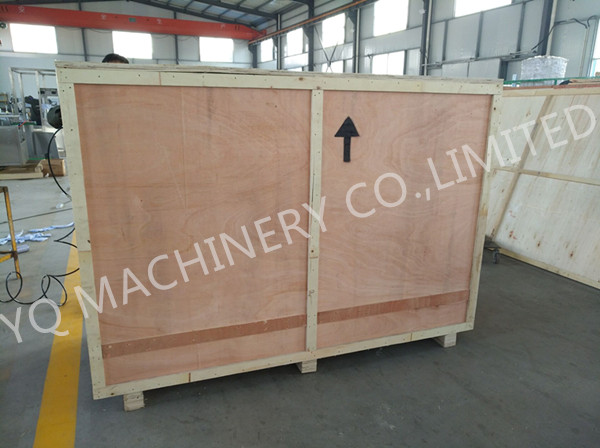

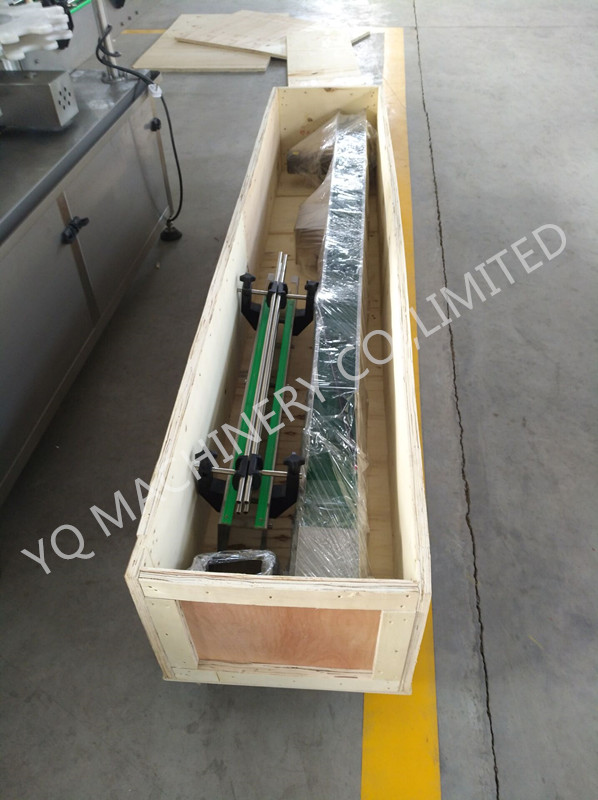

They are packed in exported cases and sent to Shanghai port:
