YQFP-VG
YQ

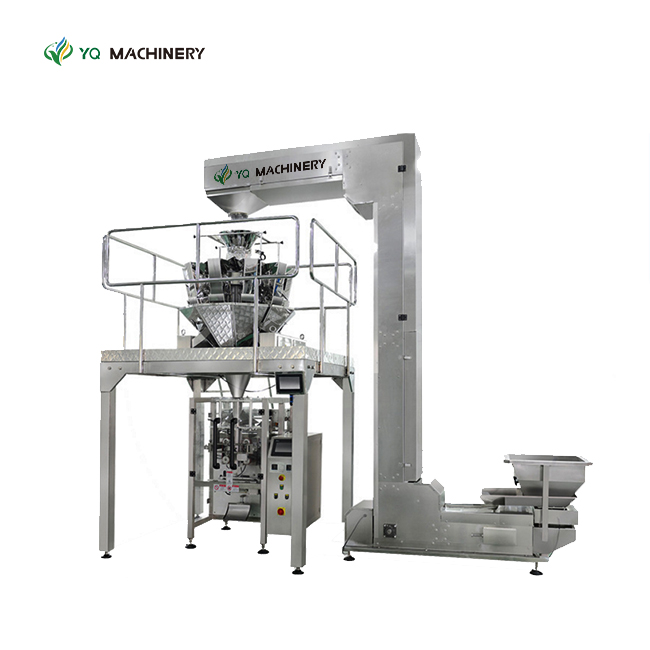

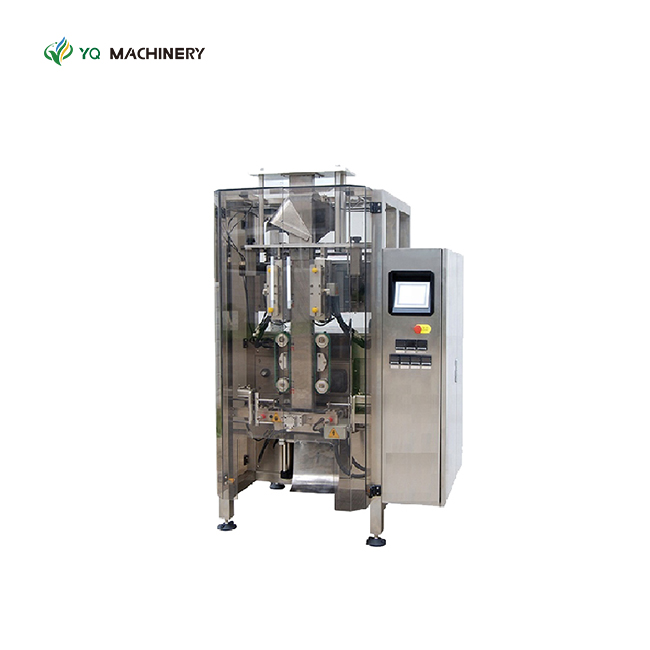

1.Packing Machine
The machine can combine with weighing system, such as :
1.multi-head weigher device (granule)
2.measuring cups(granule)
3.auger filler device(powder)
4.piston filling device(liquid,paste)
5.feeding conveyor device
The machine suitable to use in packing many kinds material which the shape is powder ,liquid , granule, bar, roll ,slice .such as :rice sugar, chocolate, nuts, potato chips, shrimp, dumplings, candy, flour, milk powder, fruit jam ,Shampoo ,shower gel ,skin lotion, small wares etc.
Specification:
Packing Speed:20--60bag/min(max)
Bag size:
L:60-300mm W:60-200mm
Bag model: Pillow-type bag, standing bag, punching device,gusset-insert bag
Power: 4.0KW/220V
Max. width film:420mm
Weight : 1050kg
Dimension:(L)1430×(W)1200×(H)1700mm
Main component and brand:
Number | Name | Model | Brand | Country |
1 | Touch Screen | MT605 | Weinview | Taiwan |
2 | PLC | FP0-C32/40T | Sony | Japan |
3 | Servo Motor | MHMD | Sony | Japan |
4 | Servo Drives | MSMDT | Sony | Japan |
5 | Temperature Controller | NG-1401 | YaTai | Shanghai |
6 | Solid-State Relay | SSR-25DA | YaTai | Shanghai |
7 | control button | Y090 | Shanghai | |
8 | Motor For Feeding Paper | YN120-40/JB15G20/220V | TVT | Beijing |
9 | Motor for discharge | YN90-40-Z/JB20G18/220V | TVT | Beijing |
10 | Photoelectric eye | EYENCE | Keyence | Japan |
12 | Proximity Switch | LJ12A3-4-Z/BX | Changfeng | Shanghai |
13 | Bar-bus | VV5QZ32-04C | Japan |

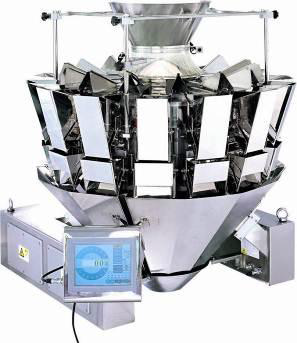

2.10 Heads Computer Combination Weigher
Main performance and structural features:
1) Select the best combination immediately from diversified weight combinations through Computer with perfect combination of high precision and high speed.
2) High precision data-type weighing sensor realizes precise weighing.
3) Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4) IP65 grade water-proof and dust-proof design. It’s clean and sanitary with all stainless steel parts.
5) Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.

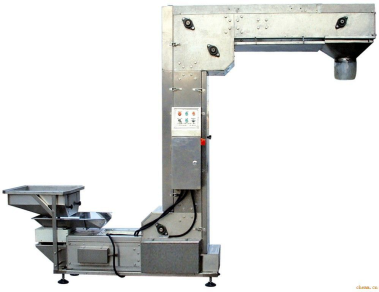

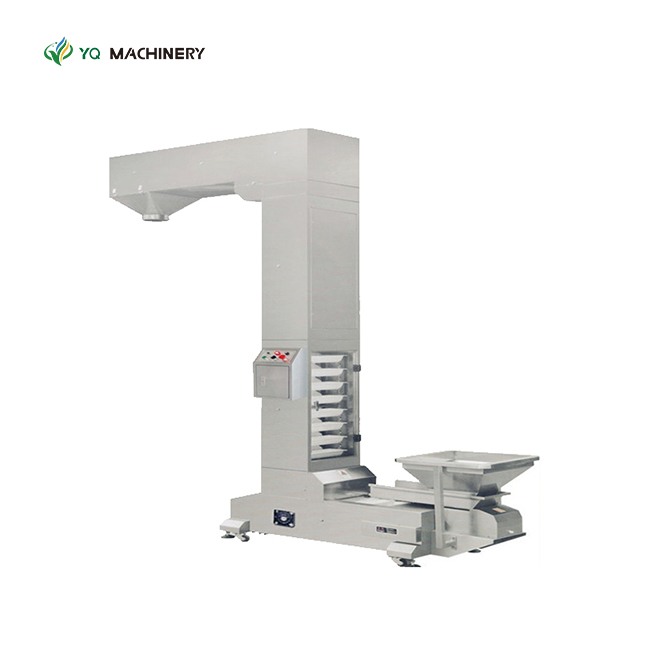

3.Z Type Material Conveyor With Feeder
Introduction:
It’s suitable use in delivery the grain, food, food stuff etc. Conveyor with the character of large quantity. NO crash material.
High Lifting etc. Lifting height: 3.3-10m (according to customer’s requires) .It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.

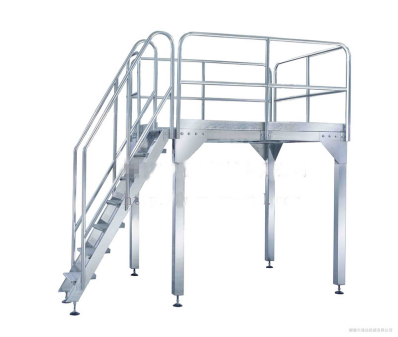

4.Working platform

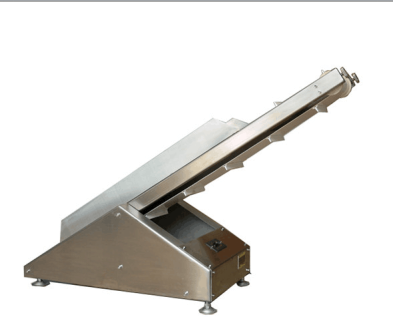

5.Product conveyor
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
