YQSF-P2000
YQ
Introduction:

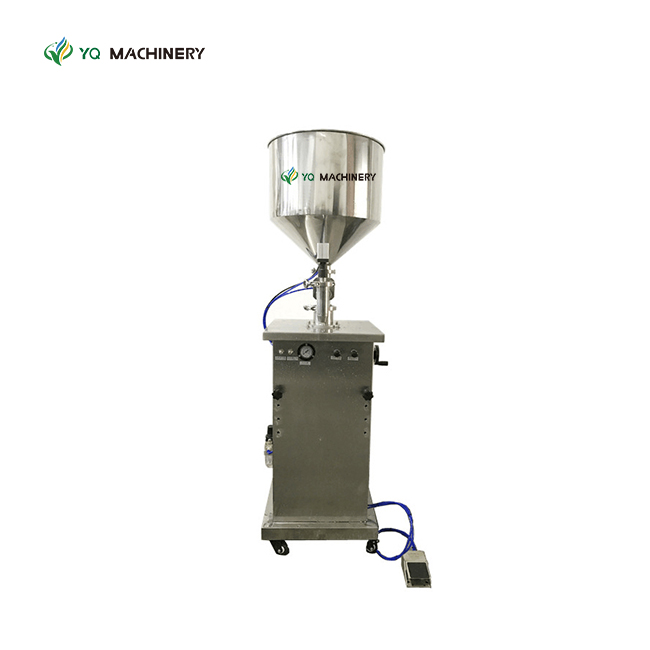

Semi-automatic vertical paste filling a series of high concentrations of fluids filling the filling machine, which is driven by a piston and turning the cylinder valve three principles of to extract and play high concentration of materials, and to magnetic reed switch control cylinder stroke, you can adjust the amount of filling. This Semi-automatic Filling Machine has simple structure, reasonable and easy to understand, and high accuracy in volume.
Features:
1. Adopts high end gas-pressure meter,operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and Taiwan AirTAC etc pneumatic components,material contact parts are made of 304L stainless steel,meet GMP approval request.
3. Precise check valve,long working life,ensure filling product can run smoothly.
4. Filling accuracy is high,within filling range,the filling volume and filling speed can be set at your option.

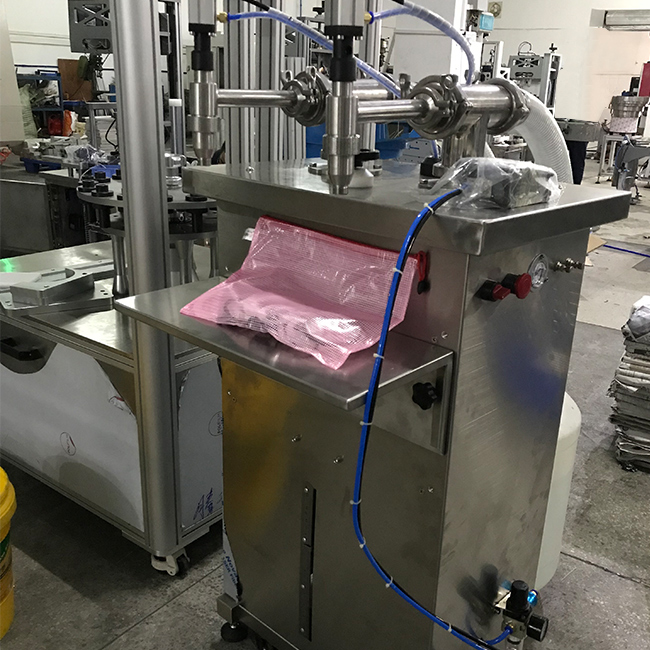

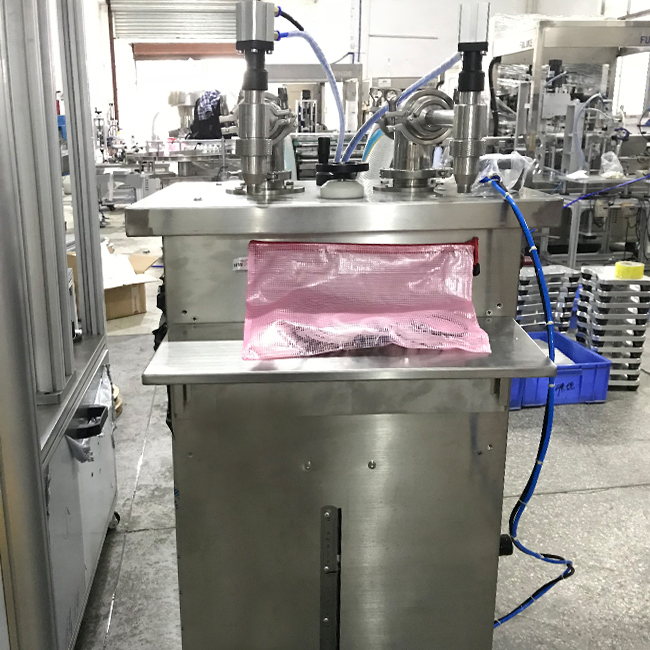

5. Double solenoid valves and double cylinders,the two filling heads can set filling volume and filling speed independently,so you can choose single nozzle filling or double nozzles filling.

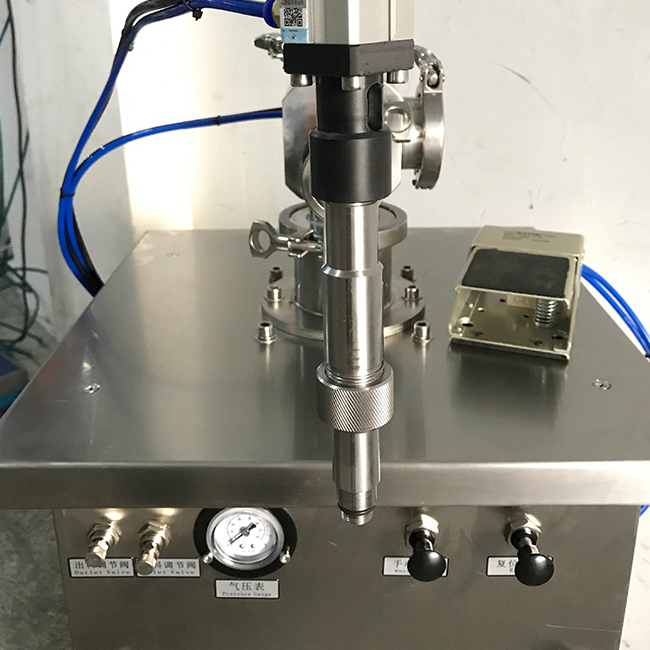

6. Filling heads adopt drip-proof and lifting filling device.
Industry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical:shampoo,body wash,liquid detergent.
Technical Parameters:
Filling volume | 10-100ml ,30-300ml,50-500ml,100-1000ml,20-2000ml,30-3000ml,50-5000ml (can be customized) |
Production capacity | 15-30 bottles /min |
Power supply | 220V / 110V 50Hz |
Dimension | 540* 420 * 1680MM |
Hopper Size | 30Liter |
Weight | 17kg,19kg,21kg,26kg,32kg,36kg,38kg, |
Filling range | 10ml-5000ml |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
