YQP-VL
YQ
Working process:

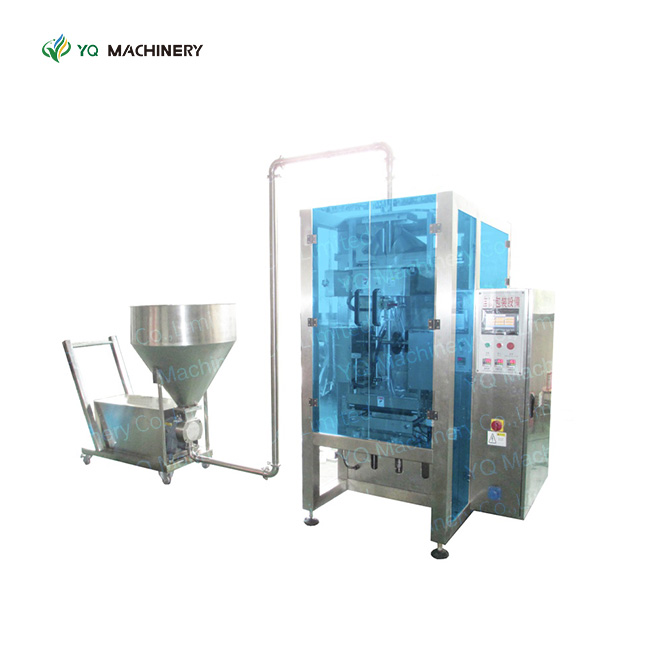

Totary pump → YQ600I packing equipment → Finished bags conveyor
Technical Parameters:

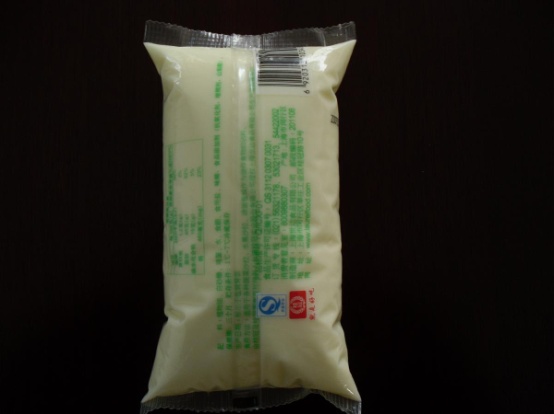

l Product: liquid or paste
l Packing bag size: bag width=100~250mm, bag length=150~400mm
l Bag type: Backing sealing
Production capacity: 6~12 bags / min
Measurement accuracy: ±1%g
Compressed air consumption: about 0.5 cubic / minute 0.6-0.7Mpa
Total power: 9.5KW (not including metal detection and self-owned equipment and other factory auxiliary equipment)
Application:
This production line is in accordance with the conventional bagging process configuration, the entire production process a high degree of automation, in line with China GMP health standards;
Introduction the production line:
1. The production line supporting machinery in addition to marked materials are stainless steel, all machine structures are in accordance with food hygiene standards selected design;
2.The material contact with the container material are food grade SUS304;
3. Often dismantling the structure are easy to dismantle the connection, to ensure that the shift or change the product when dealing with health convenience;
4. The production line of the normal production needs 1-2 employees.
The above program for customers to change, please notify the relevant person in charge of the Company, do the relevant adjustments.
Technical data:
Product name | Paste packing machine |
Bag making size | L:150-400mm, W:100-250mm |
Packing weight | 300-5000g |
Packing speed | 6-12 bags/min |
Packing precision | ±1% |
Power supply | Three phase 380V, 50-60HZ |
Total power | 9.5KW |
Machine dimension | 2500*1000*2000mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Working process:
Totary pump → YQ600I packing equipment → Finished bags conveyor
Technical Parameters:
l Product: liquid or paste
l Packing bag size: bag width=100~250mm, bag length=150~400mm
l Bag type: Backing sealing
Production capacity: 6~12 bags / min
Measurement accuracy: ±1%g
Compressed air consumption: about 0.5 cubic / minute 0.6-0.7Mpa
Total power: 9.5KW (not including metal detection and self-owned equipment and other factory auxiliary equipment)
Application:
This production line is in accordance with the conventional bagging process configuration, the entire production process a high degree of automation, in line with China GMP health standards;
Introduction the production line:
1. The production line supporting machinery in addition to marked materials are stainless steel, all machine structures are in accordance with food hygiene standards selected design;
2.The material contact with the container material are food grade SUS304;
3. Often dismantling the structure are easy to dismantle the connection, to ensure that the shift or change the product when dealing with health convenience;
4. The production line of the normal production needs 1-2 employees.
The above program for customers to change, please notify the relevant person in charge of the Company, do the relevant adjustments.
Technical data:
Product name | Paste packing machine |
Bag making size | L:150-400mm, W:100-250mm |
Packing weight | 300-5000g |
Packing speed | 6-12 bags/min |
Packing precision | ±1% |
Power supply | Three phase 380V, 50-60HZ |
Total power | 9.5KW |
Machine dimension | 2500*1000*2000mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
