YQFP-VG
YQ

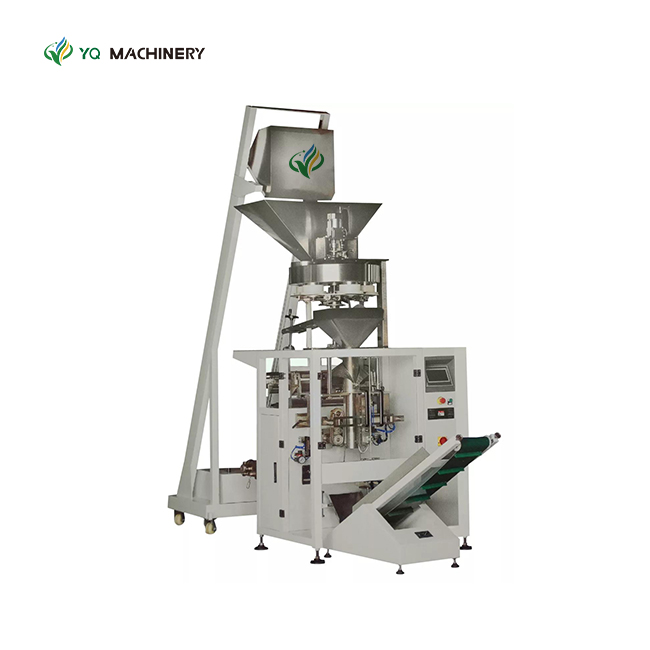

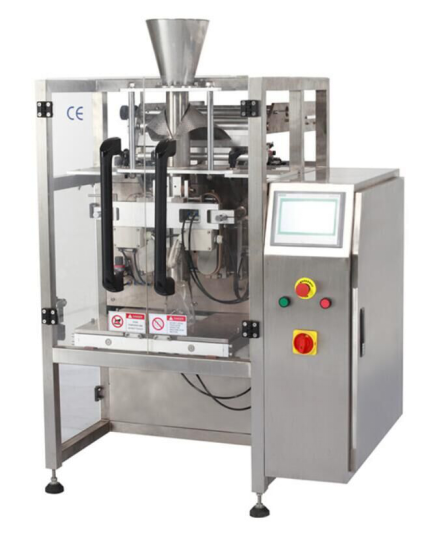

Vertical packing machine:
The machine can combine with weighing system, such as :
1.multi-head weigher device (granule)
2.measuring cups(granule)
3.auger filler device(powder)
4.piston filling device(liquid,paste)
5.feeding conveyor device
The machine suitable to use in packing many kinds material which the shape is powder ,liquid , granule, bar, roll ,slice .such as :rice sugar, chocolate, nuts, potato chips, shrimp, dumplings, candy, flour, milk powder, fruit jam ,Shampoo ,shower gel ,skin lotion, small wares etc.
Specification:
Packing Speed:20--60bag/min(max)
Bag size:
L:60-300mm W:60-200mm
Bag model: Pillow-type bag, standing bag, punching device,gusset-insert bag
Power: 4.0KW/220V
Max. width film:420mm
Weight : 1050kg
Dimension:(L)1430×(W)1200×(H)1700mm

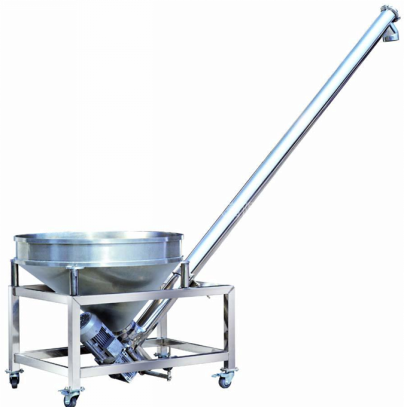

2. Screw Conveyor
Application Area:
Screw conveyor is suitable for feeding powder and granule, working together with auger filling machine.
Main Features:
1. Simplicity of operation is the key element in screw conveyor .the only moving part is the motor driven spiral which rotates with a sealed tube to move the materials along with it. There is no bearing components in pipeline, no matter how long the transportation is, the machine requires little maintenance, the conveyor is reliable, it will not occurs that some problems like bearing grease pollution during materials transportation.
2. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
3. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing.
Main Technical Parameters:
Charging Capacity | 3cbm/hour |
Hopper Volume | 200L |
Power | 3 Phases 380V/220V 50/60HZ |
Total Power | 810W |
Weight | 130kg |

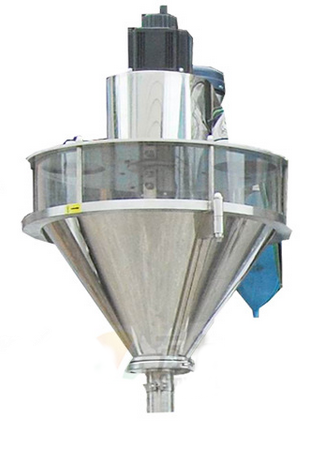

3.Auger Filler
Application Area:
Auger filler is suitable for filling various powders with easy flow or poor mobility as well as granular products, such as milk powder, rice flour, protein powder, granular medicines, granular additive, glucose, spices, dyestuff etc…
Main Features:
1. Drove by servo motor, controlled by PLC and touch panel, easy operation and stable. Touch panel shows working status, operation sign, error alarm and production when auger filler working. Modules can save 7 different working datas.
2. Suitable for filling varies micro-powders and granules through add screw length or change screw accessories.
3. Easy flow products: Installs centrifugal device on filling inlet to ensure filling accuracy.
Powder: Installs dust-collector on filling inlet.
4. Machine surface is made by stainless steel. Hopper can be open and close, easy clean no need disassemble.
5. Installs hand wheel to adjustable machine height.
Main Technical Parameters:
Filling Weight | 10-5000g(needs change screw accessories) |
Filling Accuracy | ≤100g: ≤2%; 100≤500g: ≤1%; ≤500g: ≤0.5% |
Filling Speed | 10-50 bags/min |
Power | 3Phases 380V 50/60HZ |
Total Power | 1.4KW |
Overall Dimensions | 1140*970*2030mm |
Weight | 260kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $80 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
