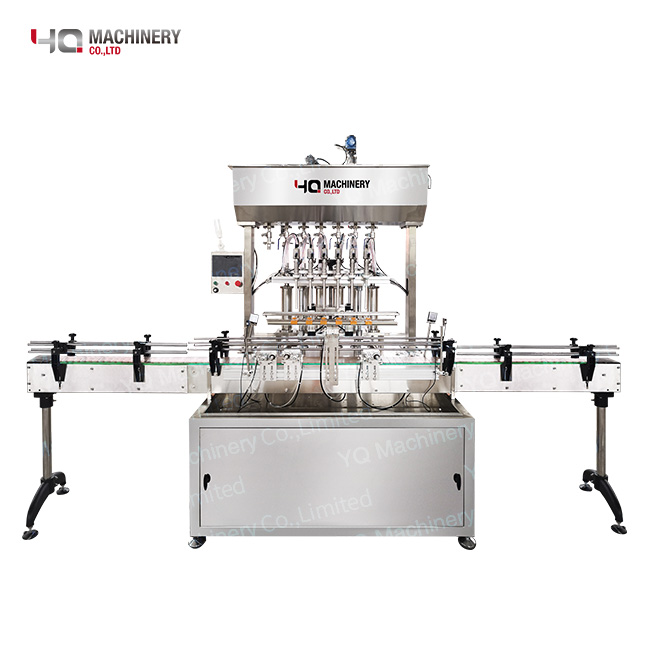

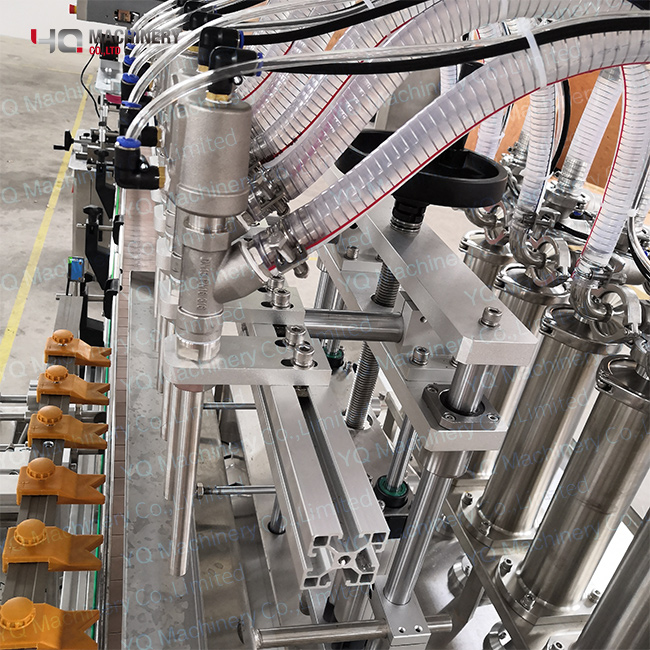

Volumetric Piston Filler:

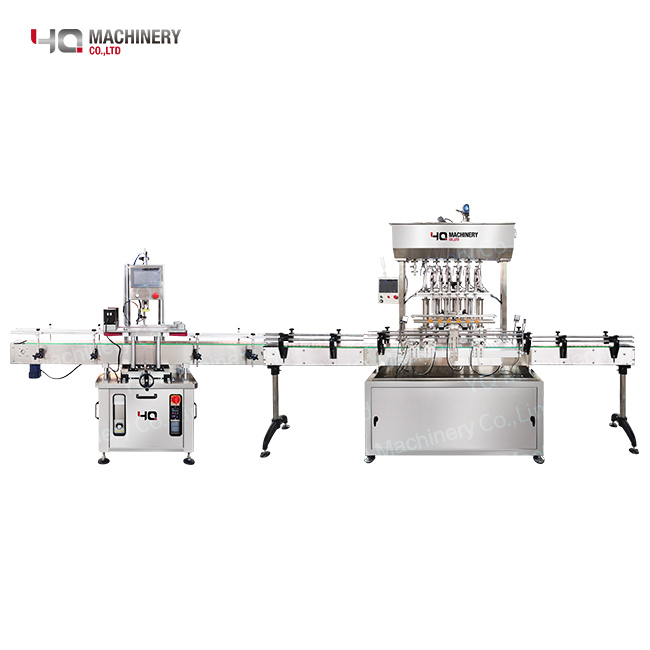

Introduction of automatic liquid filling and capping machine
We have improved the design of the paste filling machine and added some additional functions. Make the filling equipment more simple and convenient in operation, precision error, installation adjustment, equipment cleaning, maintenance and so on.
It is widely used in various industries such as food and medicine, and can be filled with different liquid viscous products. The filling machinery has compact and reasonable design, simple and beautiful appearance, and convenient adjustment of filling volume.
Features of paste filling machine:

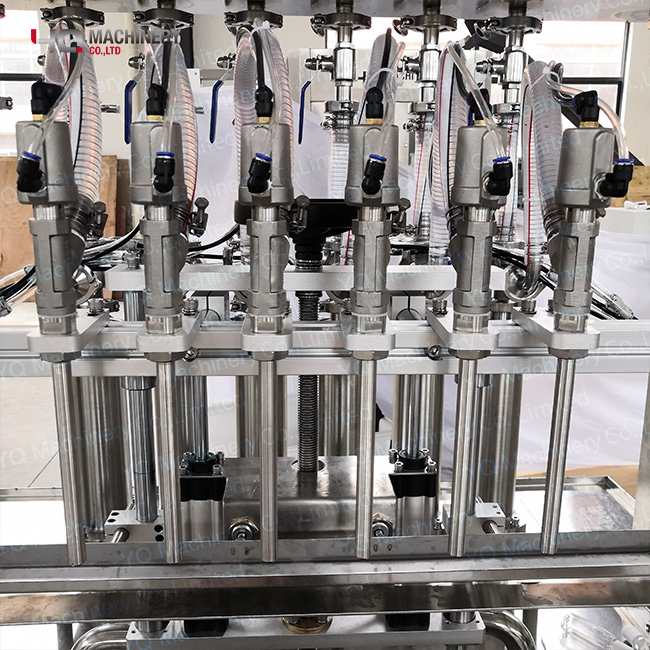

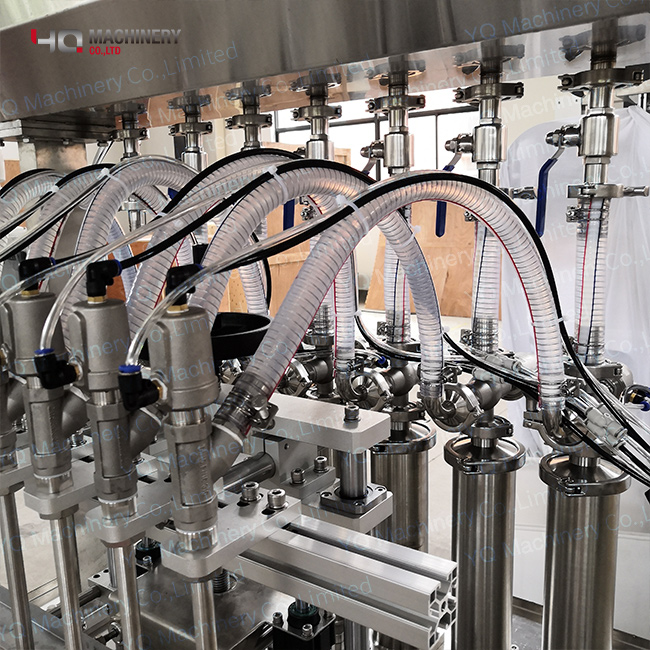

1. The volumetric injection plug is used to perform filling, with high precision and a wide adjustment dose range. It can adjust the total volume of all pump bodies as a whole, and can also adjust the single pump body slightly, which is fast and convenient.
2. The piston pump filling system does not adsorb materials, has good chemical stability, high temperature resistance, corrosion resistance, wear resistance and long service life.

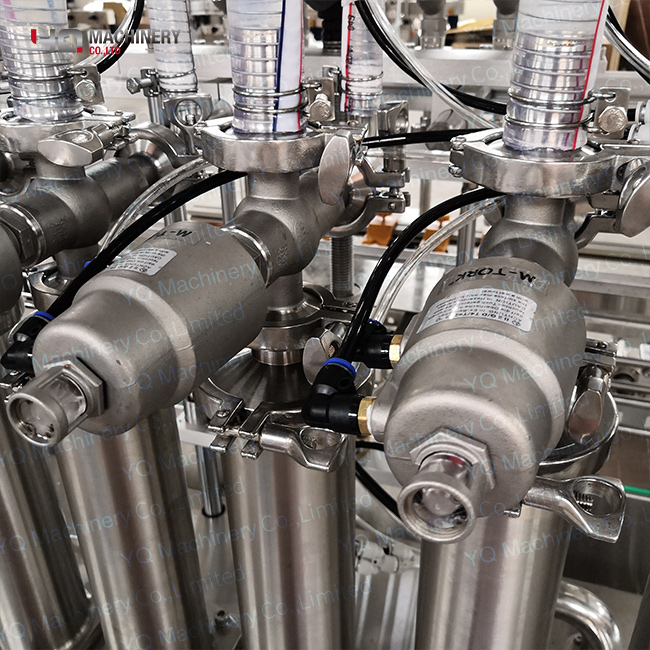

3. The servo motor is used to control the rotary valve to fill different viscous materials.

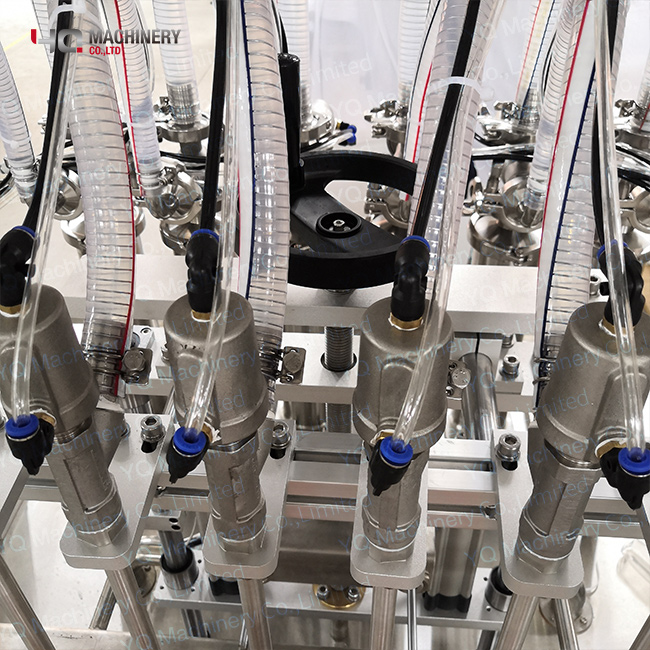

4. Pneumatically controlled low-leakage filling needles, without dripping or wire drawing.
5. The high-level liquid tank, the replenishment is controlled by the material level switch.
6. Frequency conversion speed regulation, automatic display count, and no bottle no filling.
7. The whole filling equipment is designed according to GMP requirements
Technical Parameter of liquid dispenser:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQF-Z20D | 20 | height: 100-280mm diameter: Φ30-110mm | 200ml:≤7500 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 2.5Kw | 220/380V 50/60HZ | 0.6MPa |
YQF-Z16D | 16 | 200ml:≤6500 | 2000*1100*2200 | 2.5Kw | ||||
YQF-Z12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 2.0Kw | ||||
YQF-Z8D | 8 | 200ml:≤3500 | 1800*1100*2200 | 2.0Kw | ||||
YQF-Z6D | 6 | 200ml:≤3000 | 1600*1100*2200 | 1.5Kw |

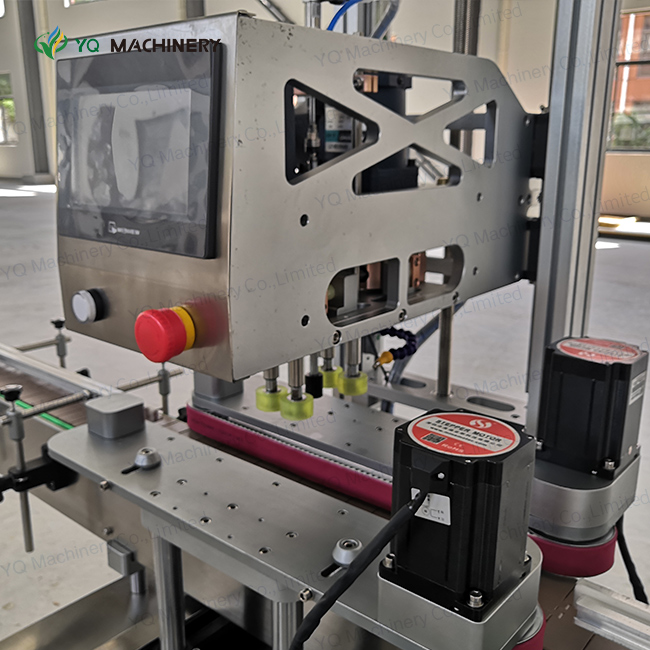

Lid Capping Machine
Introduction of sprayer capper:
The automatic capping equipment is designed with reference to the advanced international models, with high capping speed, high pass rate and easy operation. Applicable to different bottle and shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The bottle cap closure machine has a high degree of automation, good stability and easy adjustment. No spare parts are required when changing the bottle shape or cap.
Principle of pump capping machine:
1.Electrically controlled movement, strong stability;
2.Equipped with positioning device, standard screw cap, easy to operate;
3.Wide range of cap can be used such as mist spray cap,trigger pump head, flip top cap and so on.
4.The speed of lid sealing is adjustable, and the tightness can be adjusted according to different bottle caps.
Features of cap tightening machine:
1.Stainless steel material frame and never rust
2. The bottle screwing machine has good compatibility and can be used for various bottle caps. And the operation is simple.
3. Excellent flexibility, can be adjusted according to the height of the bottle and the size of cap, and the elasticity can be adjusted according to customer requirements.

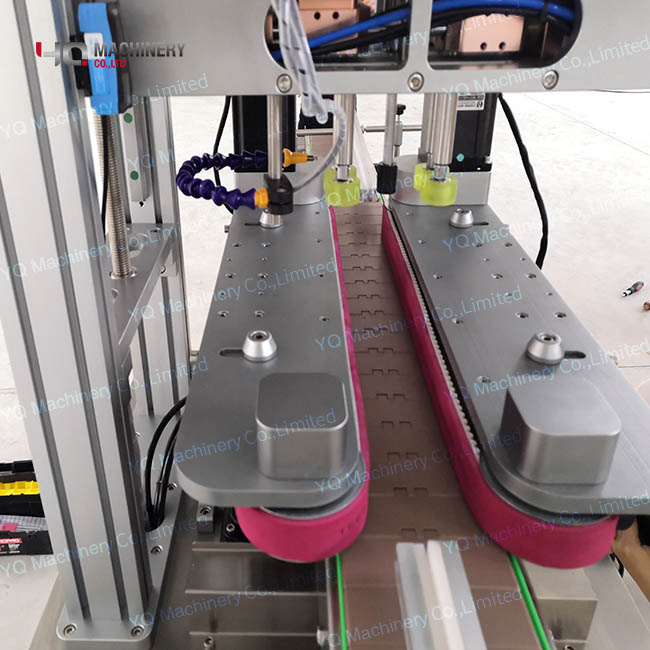

4. The rubbing cap wheel is made of wear-resistant silicone, which does not hurt the bottle cap.
5. The duckbill cap (pump head, spray head, etc.) is more advantageous, and the direction of the mouth head is uniform.
6. Equipped with lid pressing function(option)
7, can be used in the filling production line.
Technical parameter of cap screwing machine:
Model | YQC-4 |
Power supply voltage (V / Hz) | AC 220/50 110/60 (can be customized) |
Power (W) | 1500 |
Sealing height (mm) | 38-300 (customizable) |
Adapt to cover diameter (mm) | 15-17 (can be customized) |
Adapt to bottle diameter (mm) | 35-140 (can be customized) |
Working pressure (mpa) | 0.3-0.5 |
Output (bottle / min) | 30-50 |
Dimensions (L × W × H) (mm) | 2000X800X1600 |
Net weight (kg) | 250 |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
