Introduction of induction heat sealer machine:

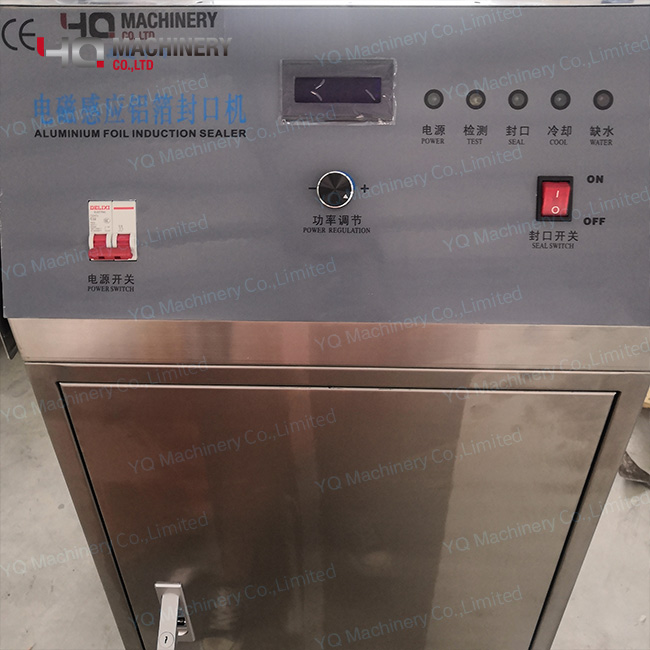

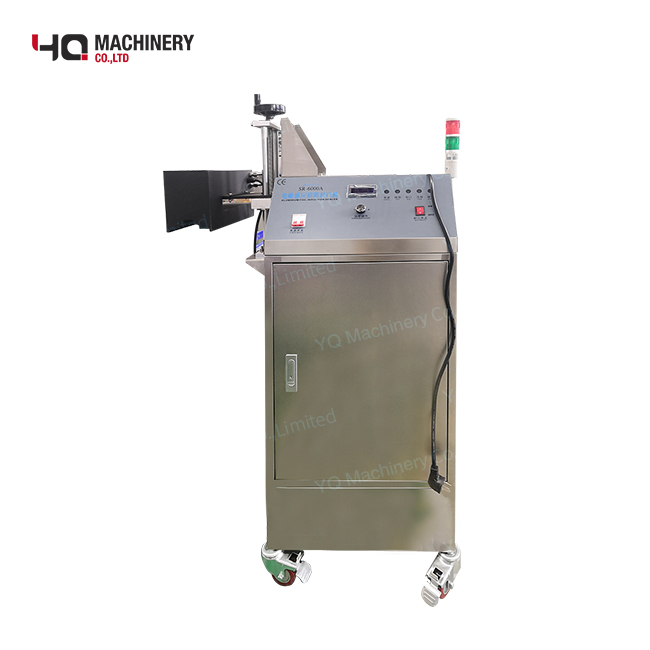

This system is a water-cooled electromagnetic induction aluminum foil sealing machine with strong versatility. It is commonly used for bottle packaging and sealing of food, condiments, medicine, chemical preparations and other products. It meets the continuous sealing requirements of modern high-speed production lines. It has advanced functions and simple operation. It can adjust the power according to the characteristics of different materials to achieve firm and beautiful product sealing purposes.
Feature of induction sealer:
1. The body is made of 304 stainless steel, and the protection level is IP51, which meets GMP standards.
2. The sensor adopts a sliding lift design.
3. With anti-interference function.
4. Fully enclosed modular circuit, reliable performance, greatly extending the operating life of the equipment.

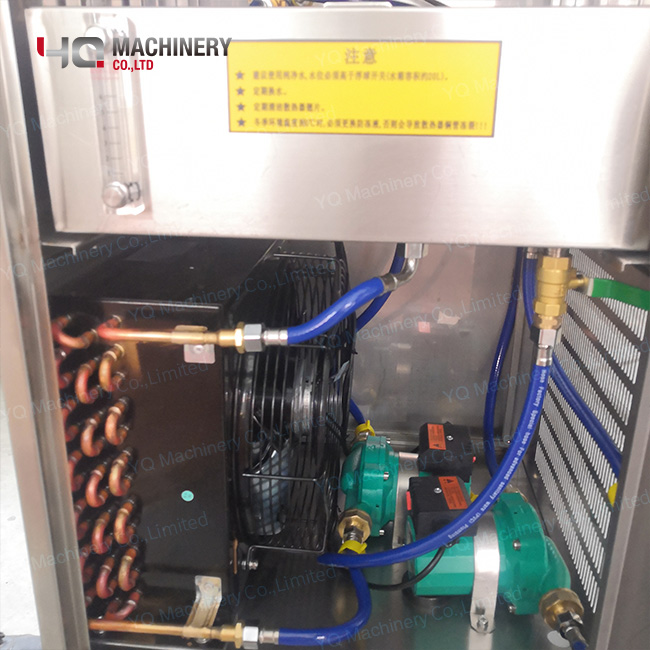

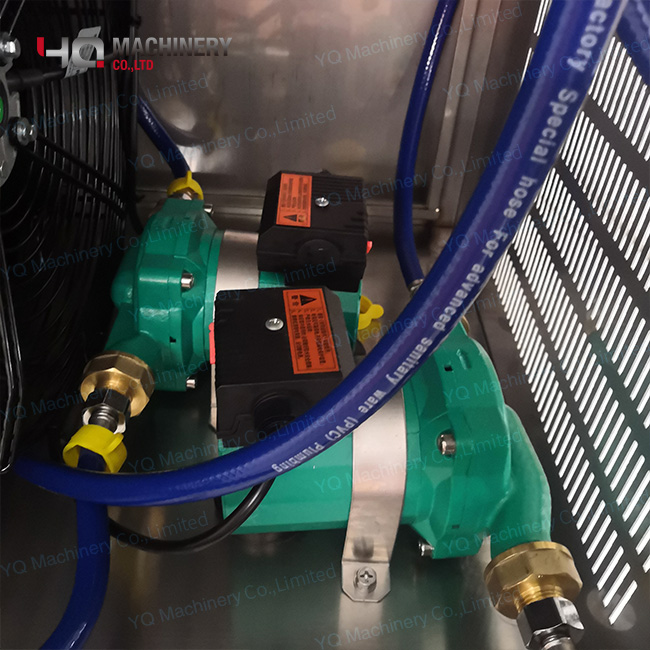

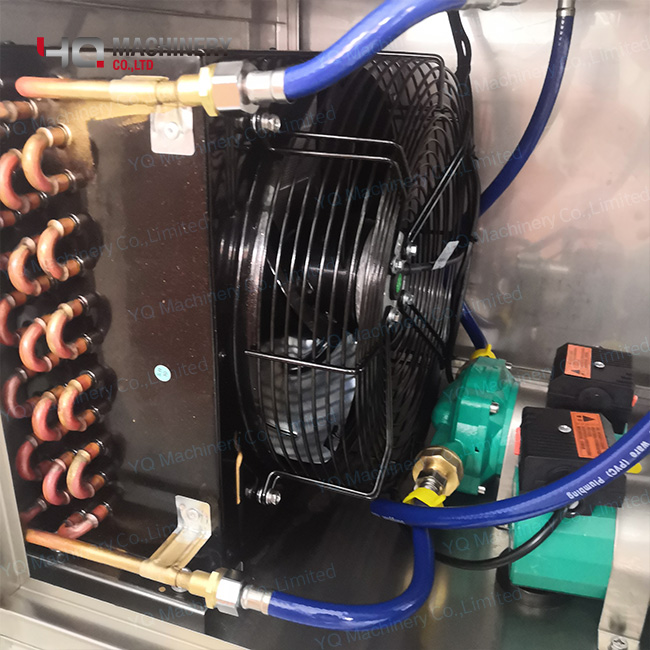

5. Double pumps circulate heat to greatly increase the heat dissipation intensity.
6. Intelligent cooling protection system.
7. Accurately control the intensity of magnetic heat.
8. Built-in stabilized power supply.
Technical Parameter Of Heat Induction Sealing Machine :
Working voltage/frequency | 220V 50/60Hz(can be customized) |
Output power | 4000Wmax |
Sealing diameter range | 20-70 mm (special for regular bottle mouth) |
50-120 mm (for large bottle mouth) | |
≥120 mm (non-standard customized) | |
Suitable for bottle height | 0-520 mm |
Sealing speed | 20m/min (Linear speed per minute divided by the diameter of the bottle equals the number of seals per minute) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
