Views: 684 Author: TRACY Publish Time: 2017-03-30 Origin: YQ MACHINERY CO.,LIMITED
We manufacture a wide variety of filling equipment to fill most product types into a wide assortment of container types.this filling line was made for our Guyana customer.It include bottle feeding machine,bottle filling machine,screw capping machine,bottle labeling machine.We manufacture two types of filling systems for the customer.Because he has two different products to fill---one is paste such ketchup,chilli sauce;another one is soy,vinegar.So the fillers have two systems---one is piston filler and the other one is gravity type filler.

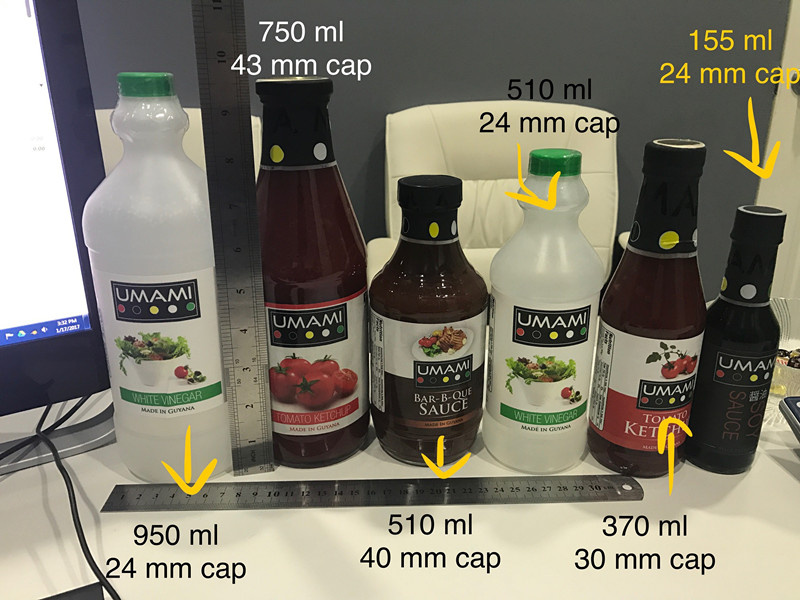

Samples of bottles:
Bank receipt:
Below is video for you:
piston filler:
gravity filler:

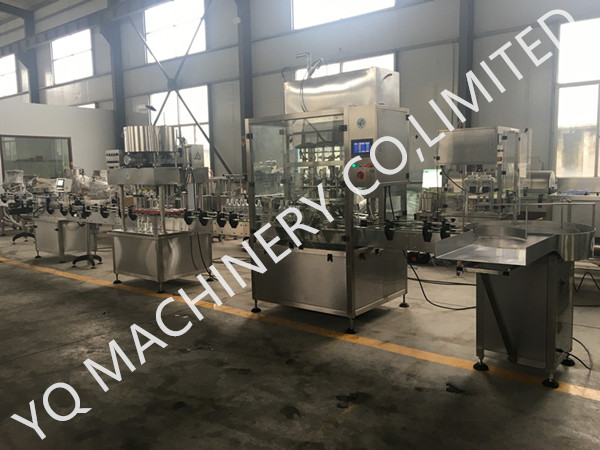

Here are pics of filling equipment for your reference:

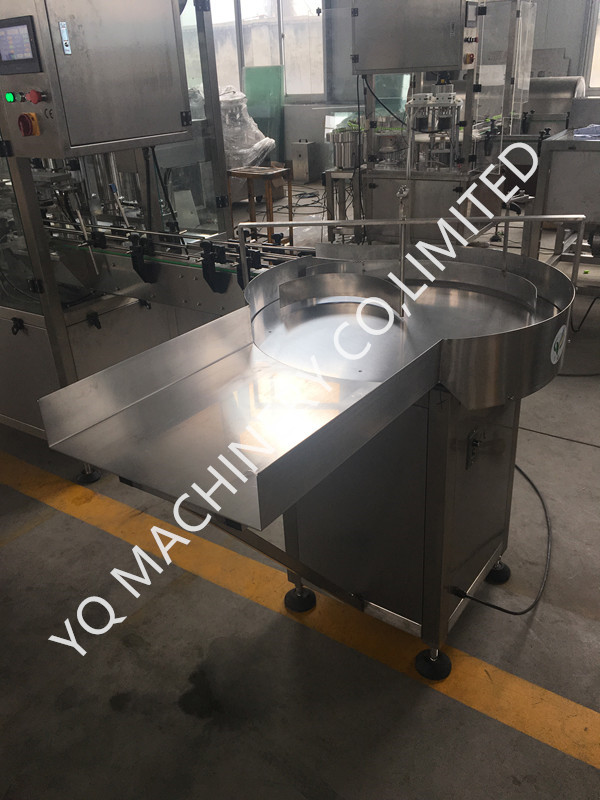

bottle turntable
Technical Specification of bottle feeder:
Applicable specifications 20-1000 ml
Bottle diameter:φ 10-φ80 mm
The bottle height:85-300 mm
Production capacity:0-100 BPM (speed adjustable)
Voltage:110v/220v;50hz/60hz
Power:0.5 kw
Weight:100kg
Machine size:1350*800*1200mm
Stainless steel:SUS304 material

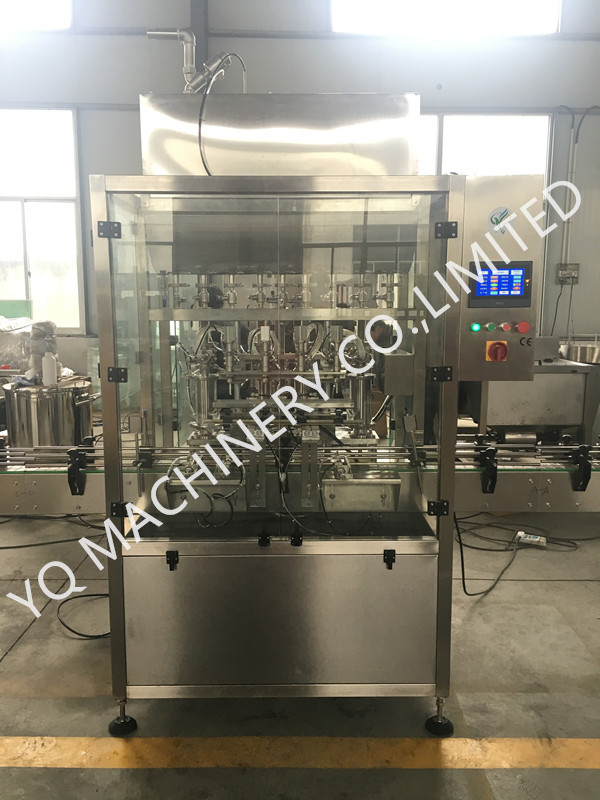

automatic 4 nozzles filling machine
Technical Parameters of filler:
Applicable specifications100-1000ml
Production capacity20-50 bottles /min
Filling accuracy±1%
Capping rate≥99%
Power supply220V / 50Hz
Power2kW
Total dimension2800 * 1000 * 2000MM

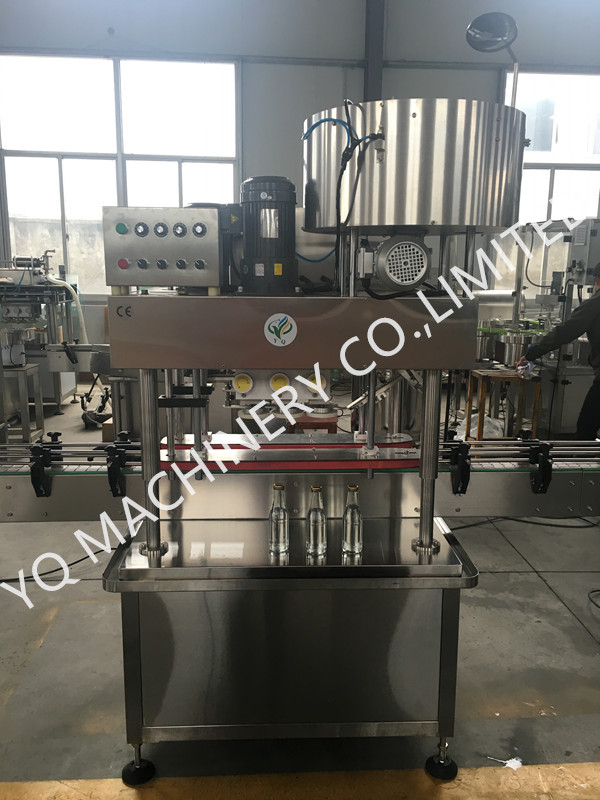

cap tightener machine
Technical Parameter of screw capper:
Power supply:AC1110V;220V/ 50Hz;60HZ
Power:1500W
Cap Diameter 10~100mm
Capping speed 40-150bottles/min
Suitable bottle height:50~280mm
Air sauce pressure:0.5MPa
Net Weight:500kg
Package size: 2050×1000×2100mm

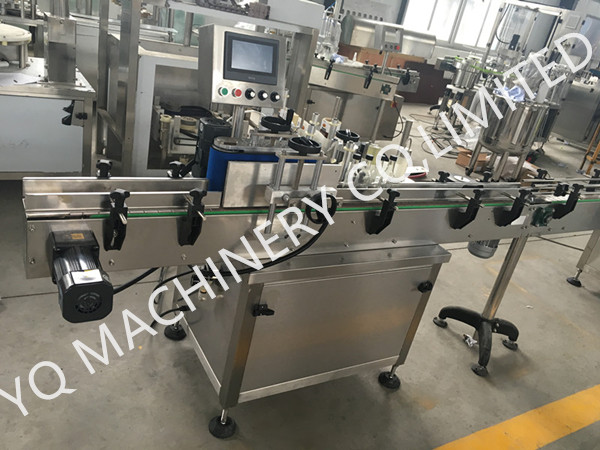

bottle sticker label applicator
Technical parameters of round bottle labeling machine:
Operating directionLeft or Right
Labeling Accuracy±1.0 mm(subject to the roughness of the plane)
Production(bottle/min)60-150(according to the size of bottle and label)
Labeling Speed(m/min)≤40
Label Specificationsadhesive sticker,transparent or opaque
The application of bottleOuter diameter 20-100mm Height 35-200mm(can be customized according to your requirement)
The application of labelHeight 20-180mm ; Length 23-300mm(can be customized
according to your requirement)
The inner diameter of label roll76mm
The outer diameter of label roll350mm (max)
The power of motor(w)550W
VoltageAC110v/220V ;50/60HZ Single phase
Size appearance(mm)2200(L) 700(W) 1270(H)mm

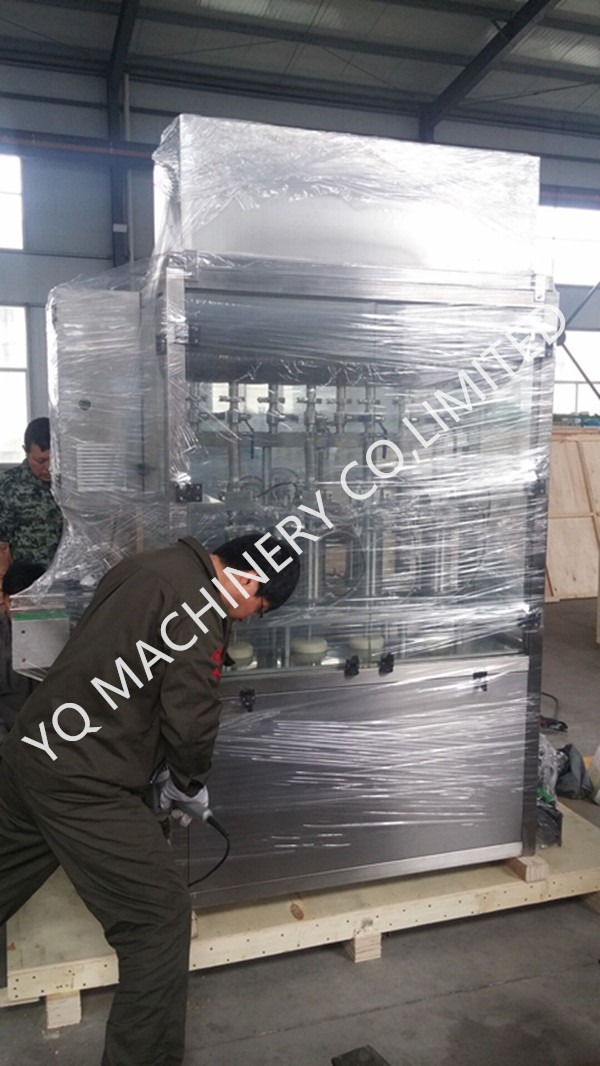

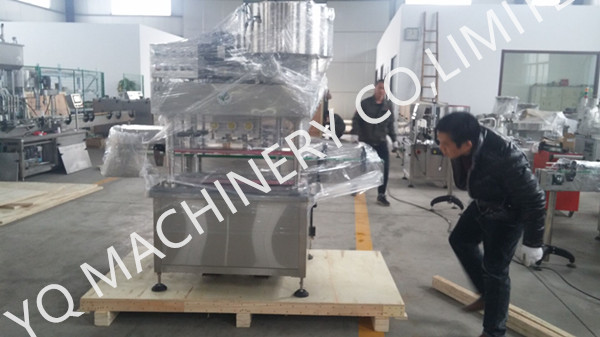

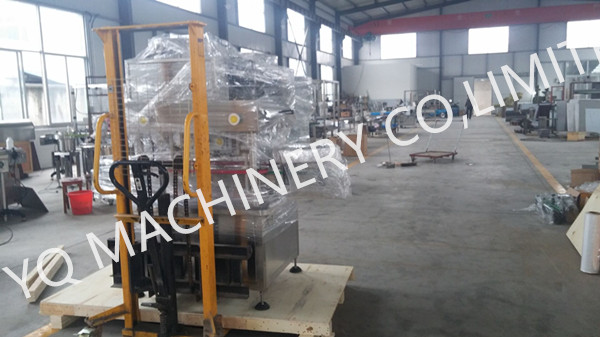

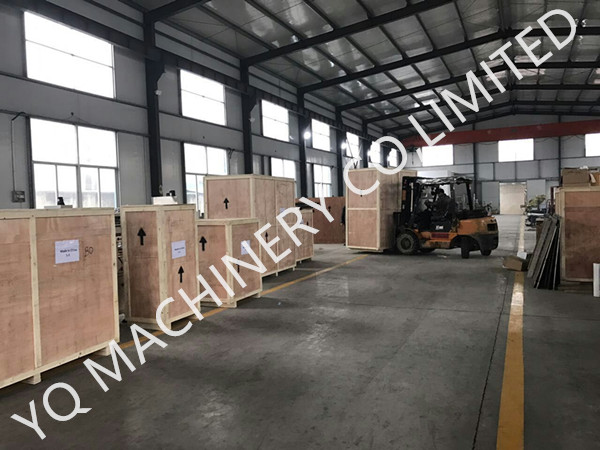

The whole filling production line was sent to Shanghai port:
The feeder,filler,capper and labeler were sent into 20 foot contaciner:
