semi automatic labeling machine

Views: 89     Author: Site Editor     Publish Time: 2019-02-20      Origin: Site

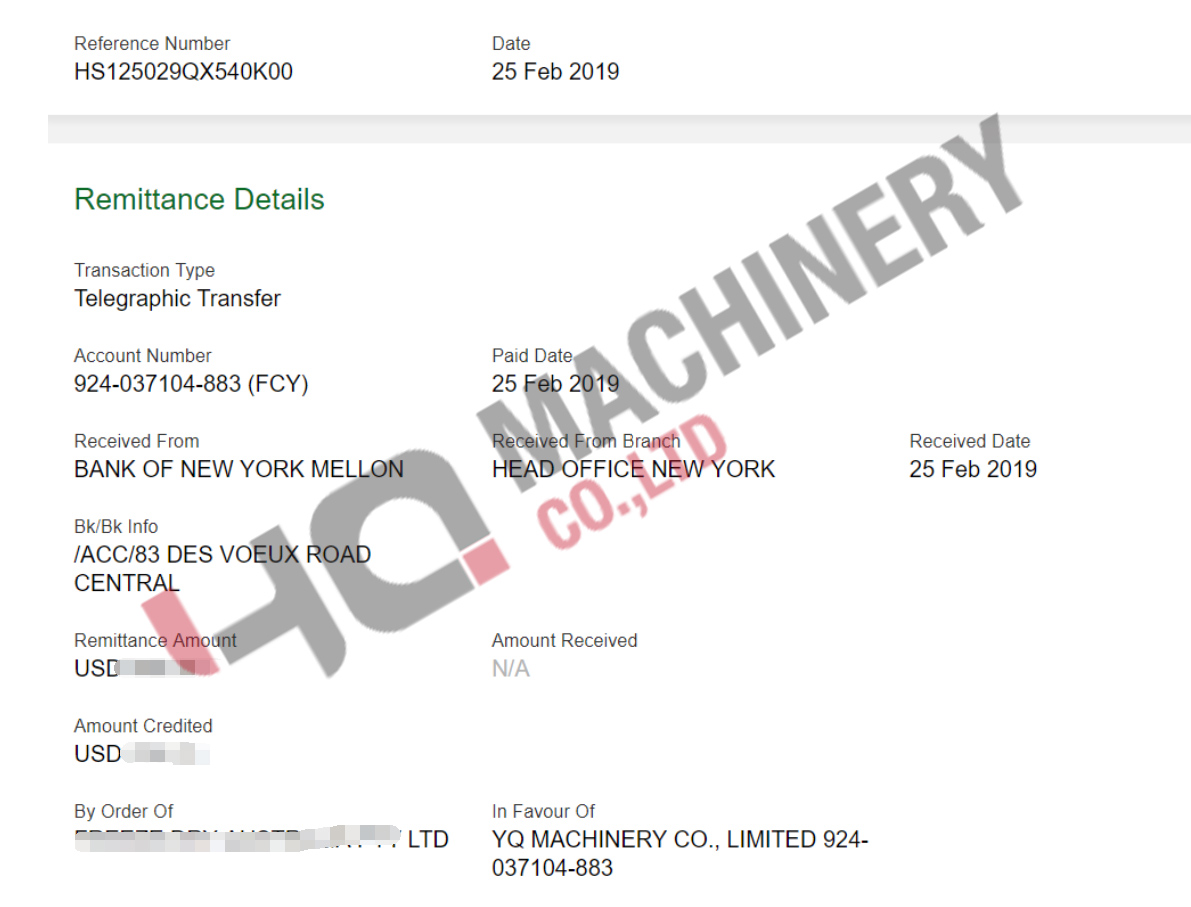

Australian customer bought this type of manual label applicator to label round container.below is payment receipt.

semi automatic labeling machine (4)

How the labeling sticker labeling machine works:

The beginning of the work process is that the boxes are fed to the labeling machine on a conveyor belt at a constant speed. The mechanical fixing device separates the boxes by a fixed distance and pushes the boxes along the direction of the conveyor belt. The mechanical system of the labeling machine includes a driving wheel, a rotary automatic labeling machine, a labeling wheel, and a reel. The driving wheel intermittently drags the label tape, the label tape is pulled out from the reel, and at the same time, the label tape is pressed onto the box by the labeling wheel. An open-loop displacement control is used on the reel to maintain the tension of the label tape. Because the labels are closely connected to each other on the label tape, the label tape must be constantly started and stopped.

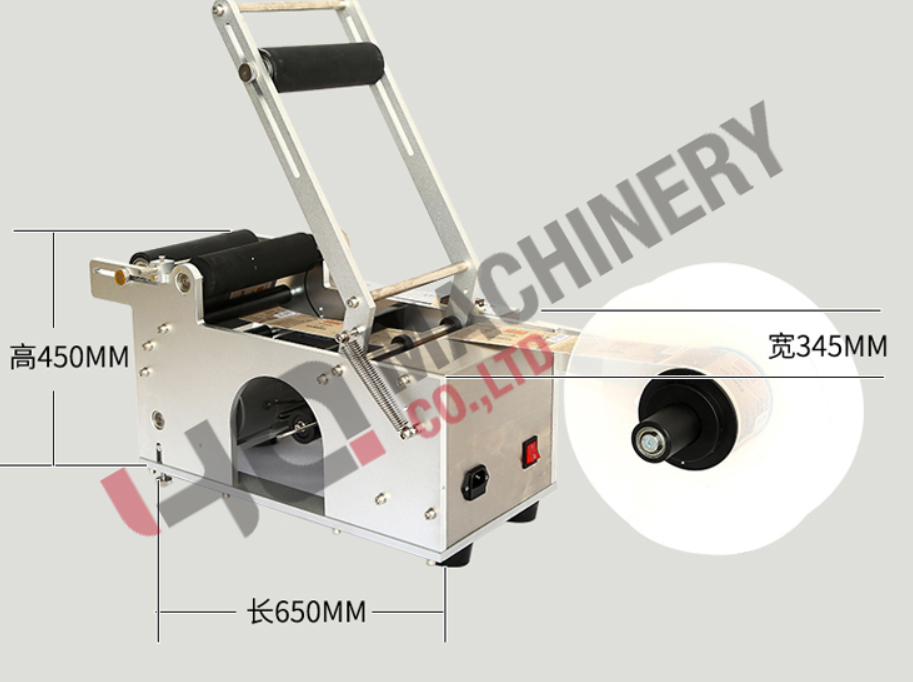

semi automatic labeling machine (3)

The label is attached to the box at the same speed as the label wheel. When the conveyor belt reaches a certain position, the drive belt of the label belt will accelerate to a speed matching the conveyor belt. After the label is attached, it will decelerate to a stop.

Since the label may slip, it has a registration mark on it to ensure that each label is placed correctly. The registration mark is read by a sensor. During the deceleration phase of the tape, the drive wheel will readjust the position to correct any position error on the tape.

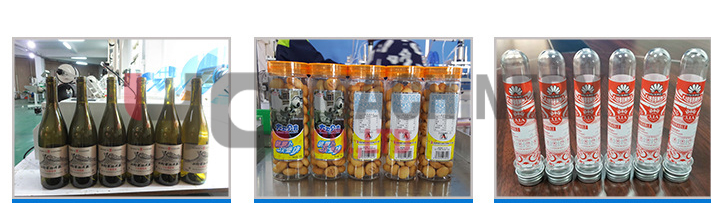

Labeling effect of semi automatic label machine:

semi automatic labeling machine (5)

Semi-automatic round bottle labeling machine

product description

YQTB-50 semi-automatic bottle labeling machine is suitable for labeling round objects ofvarious sizes. It mainly consists of host, paper feeding, paper receiving, bottle positioning and other mechanisms. The bottle is manually placed in the positioning mechanism. After positioning the bottle, press the handle switch, and the label will be automatically attached to the bottle.

The main technical parameters of label machine:

1. Production capacity: 0-40 bottles / minute

2. Labeling accuracy: ± 0.5mm

3. Pass rate: 99%

4. Power supply voltage: 220V 50Hz

5. Total power: 0.5KW

6. Dimensions: length * width * height = 600 * 300 * 400mm

7. Weight: 25Kg

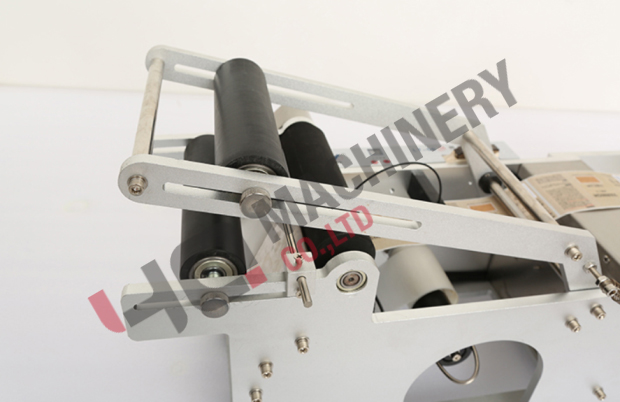

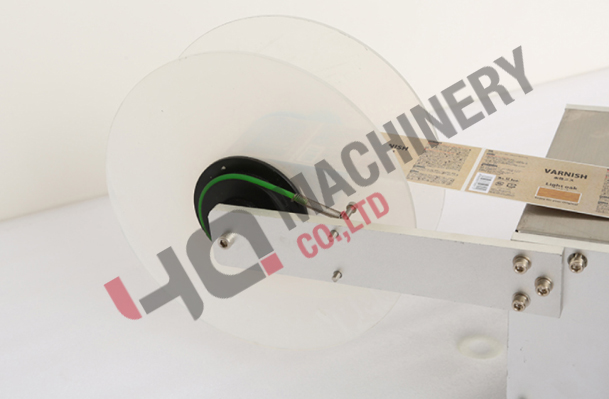

semi automatic labeling machine (6)   semi automatic labeling machine (7)

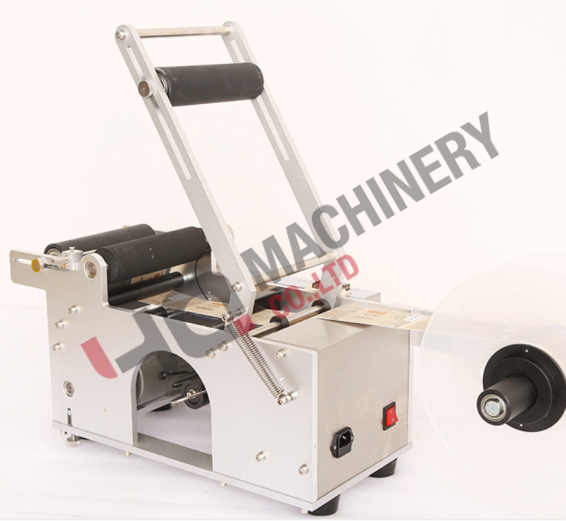

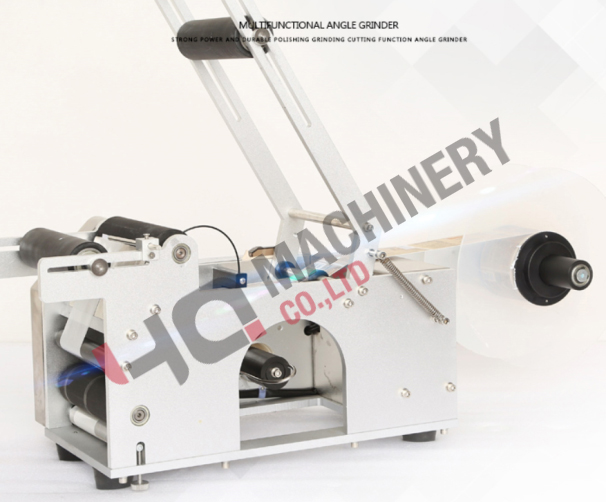

semi automatic labeling machine (1)   semi automatic labeling machine (2)
